SKU: CNB-96-SB

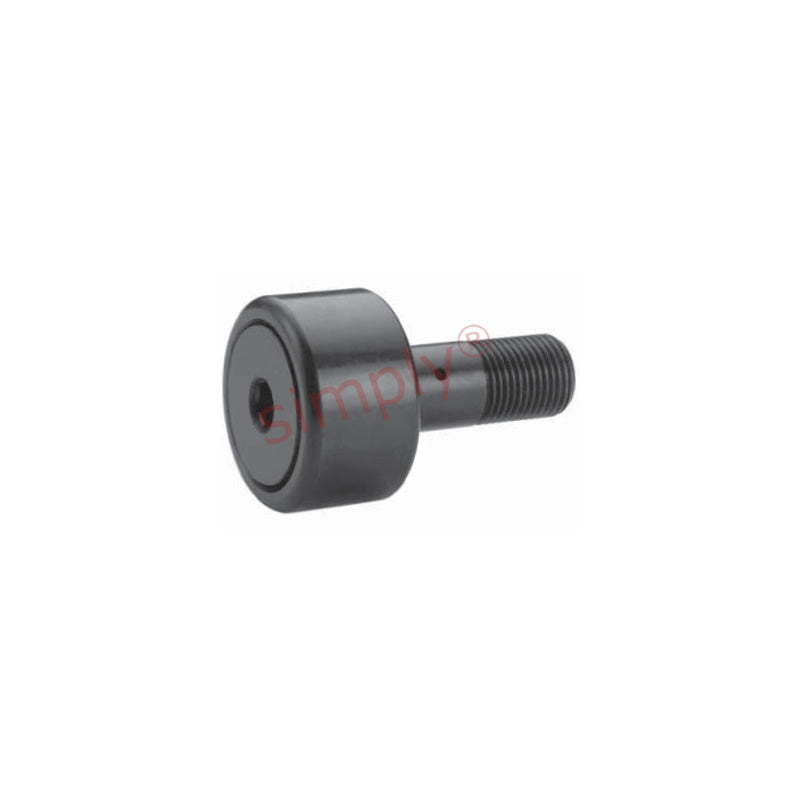

Major Brand CNB96SB Hex Head Sealed Cylindrical Cam Follower 3 inch Outside Diameter
Major Brand CNB96SB Hex Head Sealed Cylindrical Cam Follower 3 inch Outside Diameter
Regular price
€237,95
ex VAT
Regular price
Sale price
€237,95
ex VAT
Equivalent to: CF-3-SB S-96-LW CR-3-XB CRSB-48 CR48VBUU
In stock
Price Break
3+
€180,99
4+
€170,82
9+
€168,79
19+
€166,76
29+
€164,72
39+
€162,69
49+
€152,52
59+
€150,49
249+
€148,45
499+
€146,42
999+
€142,35
Description
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CF-3-SB S-96-LW CR-3-XB CRSB-48 CR48VBUU
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 76.2mm = 3 inch
- Width:
- 44.45mm = 1.75 (1-3/4) inch
- Pitch:
- UNF 1-1/4-12
Technical
Technical
| A | 3 inch |
|---|---|
| B | 1.75 inch |
| C | 1.25 inch |
| D | 2.5 inch |
| E | 1.25 inch |
| Thread class 2A F | 1-1/4-12 UNF |
| G | 5/8 inch |
| H | 1/8 inch |
| J | 1/4 inch |
| Min boss diameter | 1-3/4 inch |
| Recommended bore | 1.25 inch |
| Recommended torque | 3450 lbf-in |
| Max static capacity | 24910 lbs |
| Basic dynamic rating | 15720 lbs |
