SKU: CNBH-20-SB

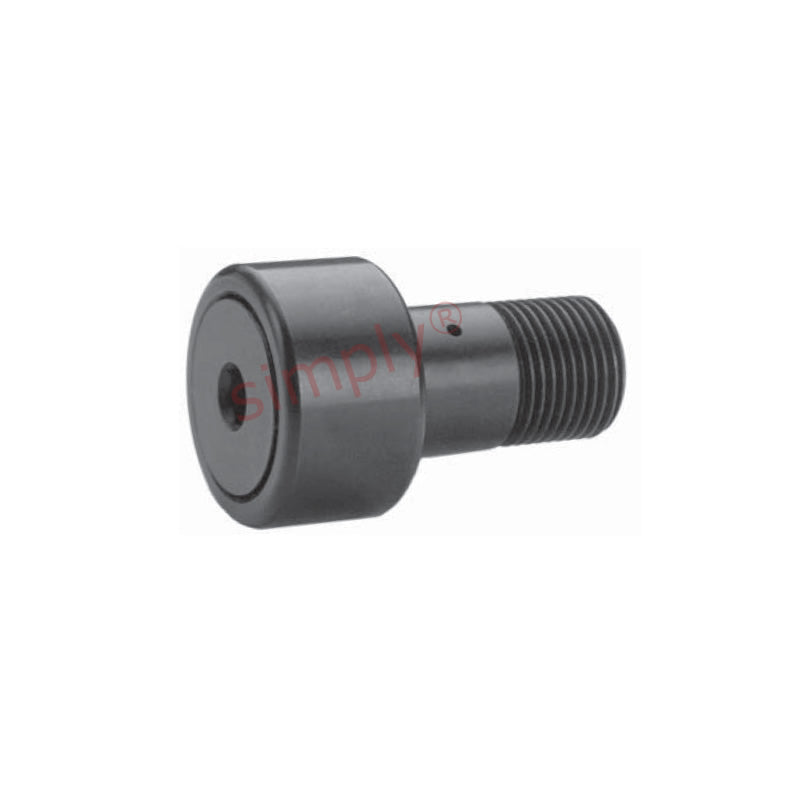

Major Brand CNBH20SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 5/8 inch Outside Diameter
Major Brand CNBH20SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 5/8 inch Outside Diameter
Regular price
€41,95
ex VAT
Regular price
Sale price
€41,95
ex VAT
Equivalent to: CFH-5/8-SB H-20-LW HR-5/8-XB CRHSB-10-1 CRH10-1VBUU
In stock
Price Break
3+
€31,77
4+
€29,99
9+
€29,63
19+
€29,27
29+
€28,92
39+
€28,56
49+
€26,78
59+
€26,42
249+
€26,06
499+
€25,70
999+
€24,99
Description
Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Equivalent: CFH-5/8-SB H-20-LW HR-5/8-XB CRHSB-10-1 CRH10-1VBUU
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Width:
- 11.11mm = 0.437 (7/16) inch
- Pitch:
- UNF 5/16-24

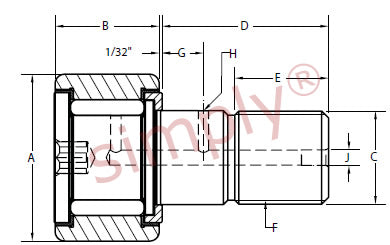

Technical
Technical
| A | 0.625 inch |
|---|---|
| B | 0.4375 inch |
| C | 0.3125 inch |
| D | 0.75 inch |
| E | 0.312 inch |
| Thread class 2A F | 5/16-24 UNF |
| J | 1/8 inch |
| Min boss diameter | 15/32 inch |
| Recommended bore | 0.3125 inch |
| Recommended torque | 90 lbf-in |
| Max static capacity | 2480 lbs |
| Basic dynamic rating | 995 lbs |
