SKU: CRB25/83-INA

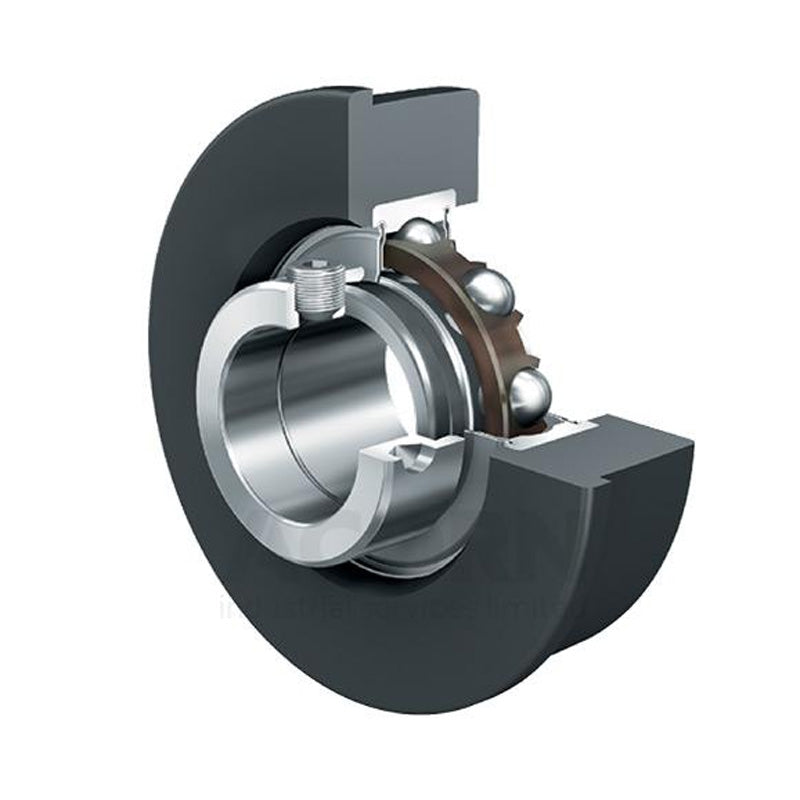

INA CRB25/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x83.6x36.2mm
INA CRB25/83XL Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x83.6x36.2mm
Regular price
€76,95
ex VAT
Regular price
Sale price
€76,95
ex VAT
In stock
Price Break
3+
€58,11
5+
€54,84
10+
€54,19
15+
€53,54
20+
€52,88
30+
€52,23
40+
€48,97
50+
€48,31
60+
€47,66
75+
€47,01
100+
€45,70
Description
Description
|
INA CRB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 83.6mm
- Width:
- 36.2mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 83.6mm |
| B2 | 36.2mm |
| B1 | 31mm |
| C | 25.4mm |
| C1 | 4.8mm |
| D1 | 87.4mm |
| D2 | 46mm |
| d3 max | 37.5mm |
| S2 | 12.7mm |
| Operating temperature | -20 deg C to +85 deg C |
| Rubber ring: hardness, Shore A | 80 deg |
| Rubber ring: load carrying capacity Cg | 1000 N |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Designation of rubber interliner | CR52/83 |
| Designation of bearing | RAE25-NPP |
| Weight | 0.32 kg |
