SKU: CSA.202

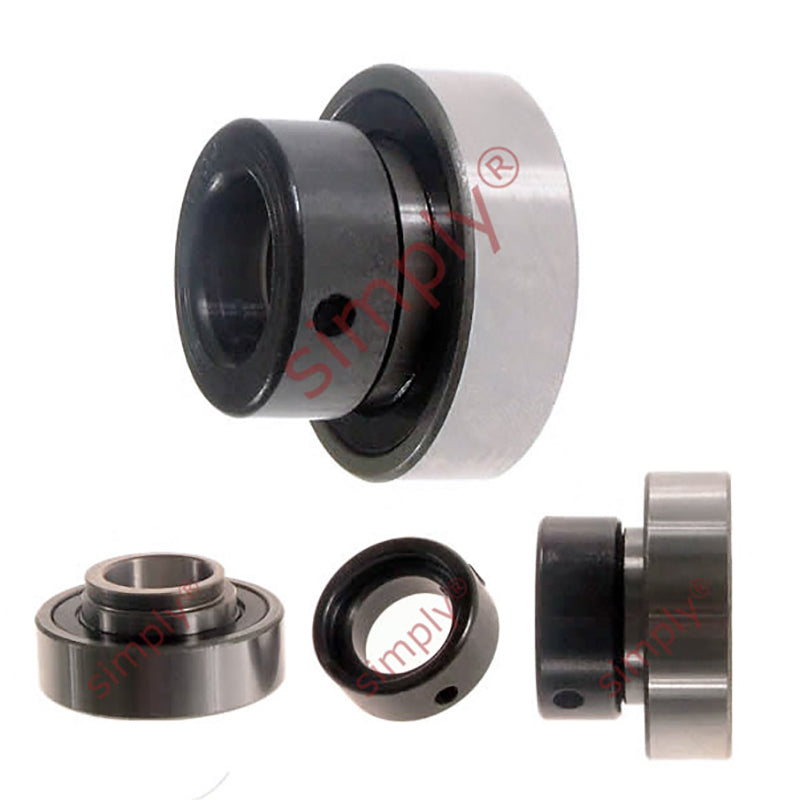

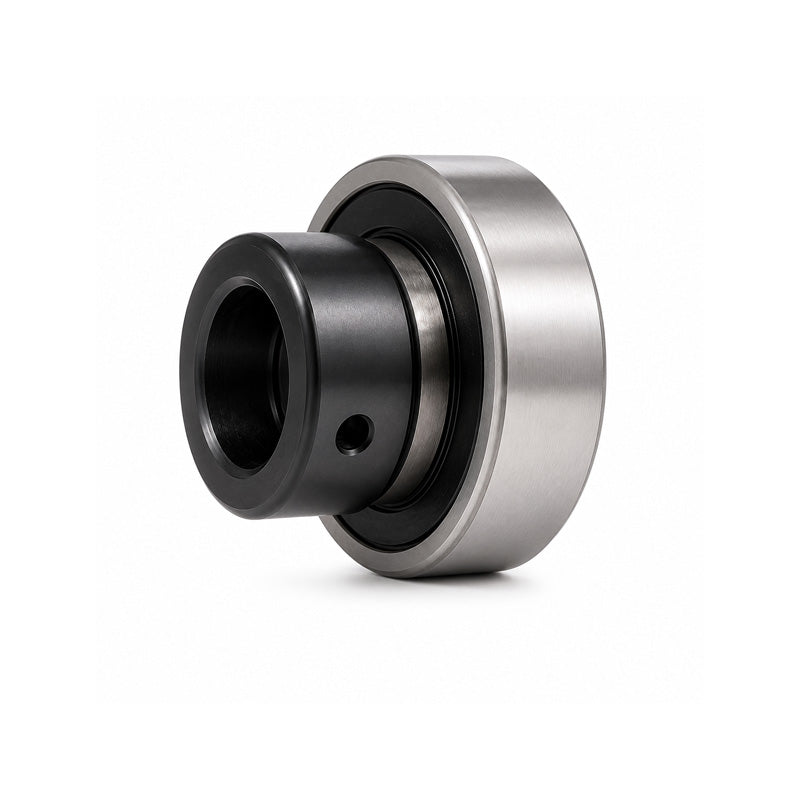

CSA202 Metric Bearing Insert with Locking Collar 15mm Bore 40mm Outside Dia
CSA202 Metric Bearing Insert with Locking Collar 15mm Bore 40mm Outside Dia
Regular price
€8,95
ex VAT
Regular price
Sale price
€8,95
ex VAT
In stock
Price Break
3+
€6,73
4+
€6,35
9+
€6,27
19+
€6,20
49+
€6,12
99+
€6,05
499+
€5,67
999+
€5,59
1999+
€5,52
2999+
€5,44
4999+
€5,29
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Style:
- CSA
Technical
Technical
| d | 15mm |
|---|---|
| Be | 12mm |
| D | 40mm |
| z | 19.1mm |
| n | 6mm |
| m | 13.1mm |
| Bi | 28.6mm |
| k | 28.6mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.6mm |
| Grub screw | M6X1.0 |
| Weight | 0.13 kg |
| Dynamic load | 960 kgf |
| Static load | 480 kgf |
