SKU: CSA.202-10

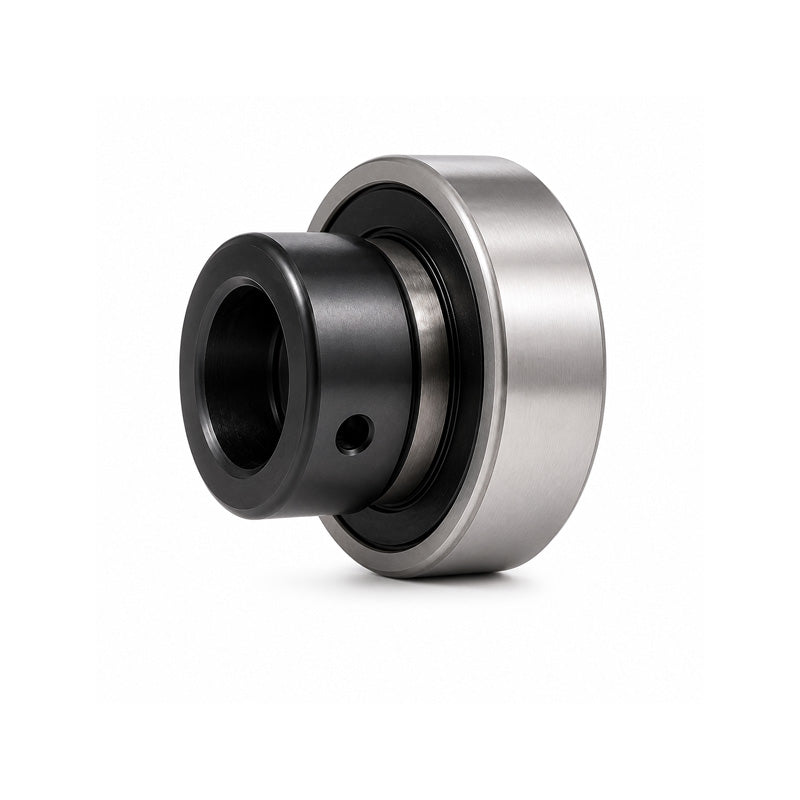

CSA202-10 Imperial Bearing Insert with Locking Collar 5/8 inch Bore 40mm Outside Dia
CSA202-10 Imperial Bearing Insert with Locking Collar 5/8 inch Bore 40mm Outside Dia
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
In stock
Price Break
3+
€9,16
4+
€8,65
9+
€8,54
19+
€8,44
49+
€8,34
99+
€8,23
499+
€7,72
999+
€7,62
1999+
€7,51
2999+
€7,41
4999+
€7,20
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Style:
- CSA
Technical
Technical
| d | 5/8 inch |
|---|---|
| Be | 12mm |
| D | 40mm |
| z | 19.1mm |
| n | 6mm |
| m | 13.1mm |
| Bi | 28.6mm |
| k | 28.6mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.6mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.13 kg |
| Dynamic load | 960 kgf |
| Static load | 480 kgf |
