SKU: CSB.202

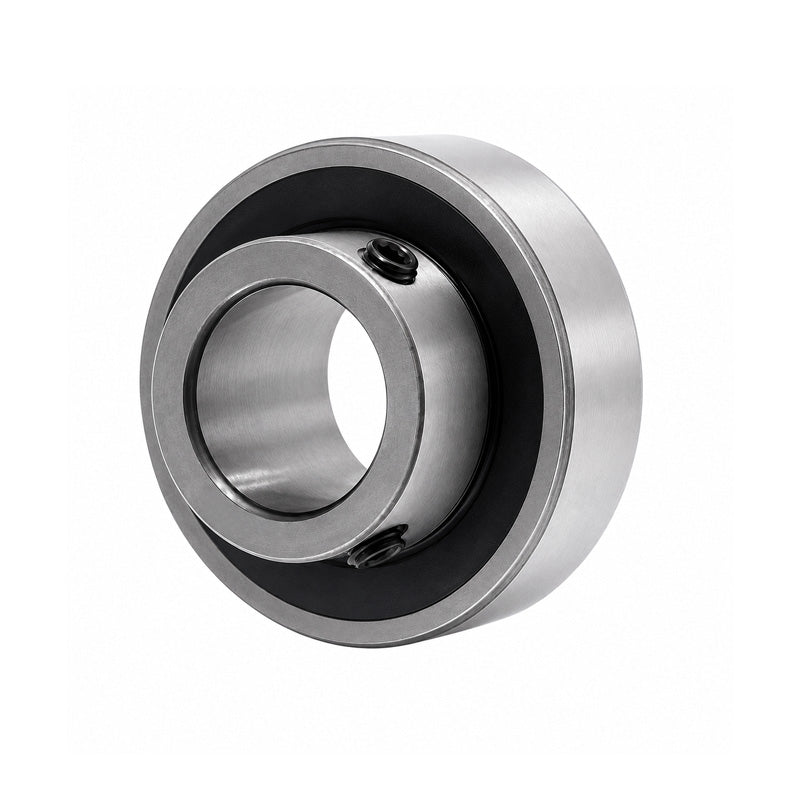

CSB202 Metric Bearing Insert with 15mm Bore 40mm Outside Dia
CSB202 Metric Bearing Insert with 15mm Bore 40mm Outside Dia
Regular price
€12,24
ex VAT
Regular price
Sale price
€12,24
ex VAT
In stock
Price Break
10+
€10,89
19+
€10,28
29+
€10,16
39+
€10,04
49+
€9,91
74+
€9,79
99+
€9,18
199+
€9,06
249+
€8,94
499+
€8,81
999+
€8,57
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 15mm |
|---|---|
| Be | 12mm |
| D | 40mm |
| Bi | 22mm |
| n | 6mm |
| m | 16mm |
| G | 4.5mm |
| h | 3.6mm |
| Grub screw | M5x0.8 |
| Weight | 0.1 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
