SKU: CSB.204

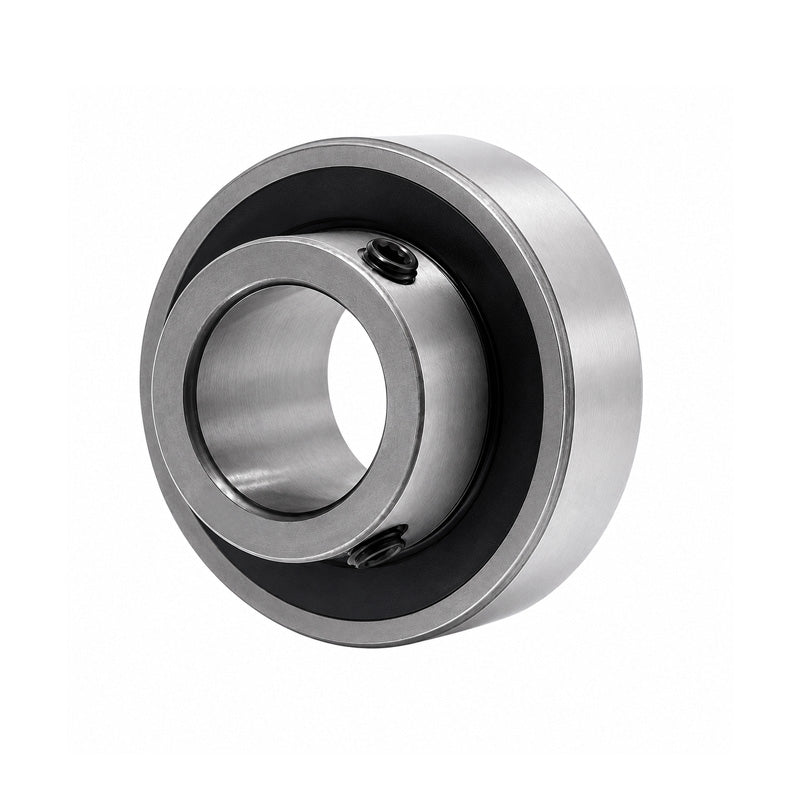

CSB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
CSB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
€9,75
ex VAT
Regular price
Sale price
€9,75
ex VAT
In stock
Price Break
10+
€8,68
19+
€8,19
29+
€8,09
39+
€8,00
49+
€7,90
74+
€7,80
99+
€7,31
199+
€7,22
249+
€7,12
499+
€7,02
999+
€6,83
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 20mm |
|---|---|
| Be | 14mm |
| D | 47mm |
| Bi | 25mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | M6X1.0 |
| Weight | 0.15 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
