SKU: CUC204-12

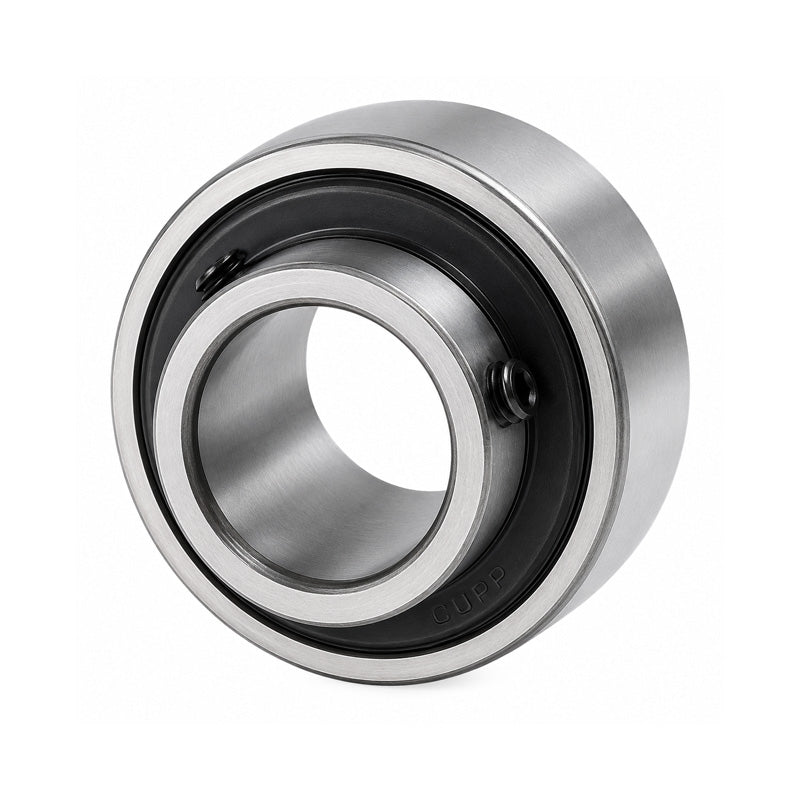

CUC204-12 Imperial Cylindrical Bearing Insert with 3/4 inch Bore 47mm Outside Dia
CUC204-12 Imperial Cylindrical Bearing Insert with 3/4 inch Bore 47mm Outside Dia
Regular price
€7,42
ex VAT
Regular price
Sale price
€7,42
ex VAT
Equivalent to: UR204-12 RB204-12
In stock
Price Break
10+
€6,60
19+
€6,23
29+
€6,16
39+
€6,08
49+
€6,01
74+
€5,94
99+
€5,57
199+
€5,49
249+
€5,42
499+
€5,34
999+
€5,19
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR204-12 RB204-12
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Type:
- Parallel Outer
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| N | 12.7mm |
| M | 18.3mm |
| G | 4.8mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 12800 N |
| Static Load | 6650 N |
| Weight | 0.16 kg |
