SKU: CUC208-24

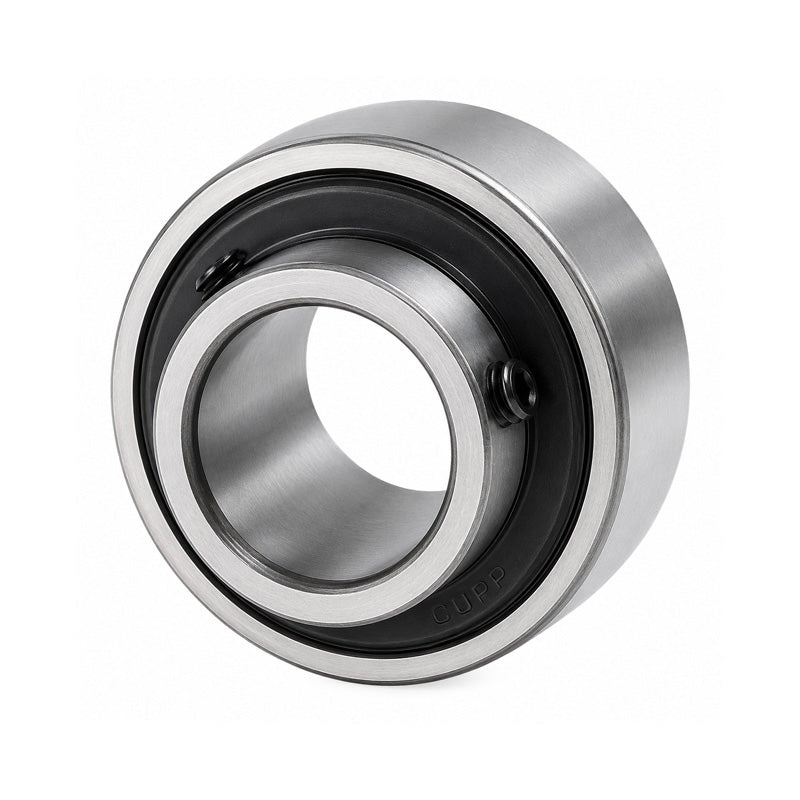

CUC208-24 Imperial Cylindrical Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
CUC208-24 Imperial Cylindrical Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Regular price
€15,04
ex VAT
Regular price
Sale price
€15,04
ex VAT
Equivalent to: UR208-24 RB208-24
In stock
Price Break
10+
€13,39
19+
€12,63
29+
€12,48
39+
€12,33
49+
€12,18
74+
€12,03
99+
€11,28
199+
€11,13
249+
€10,98
499+
€10,83
999+
€10,53
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR208-24 RB208-24
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Type:
- Parallel Outer
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 21mm |
| N | 19mm |
| M | 30.2mm |
| G | 8mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 29500 N |
| Static Load | 18100 N |
| Weight | 0.68 kg |
