SKU: D1400-115

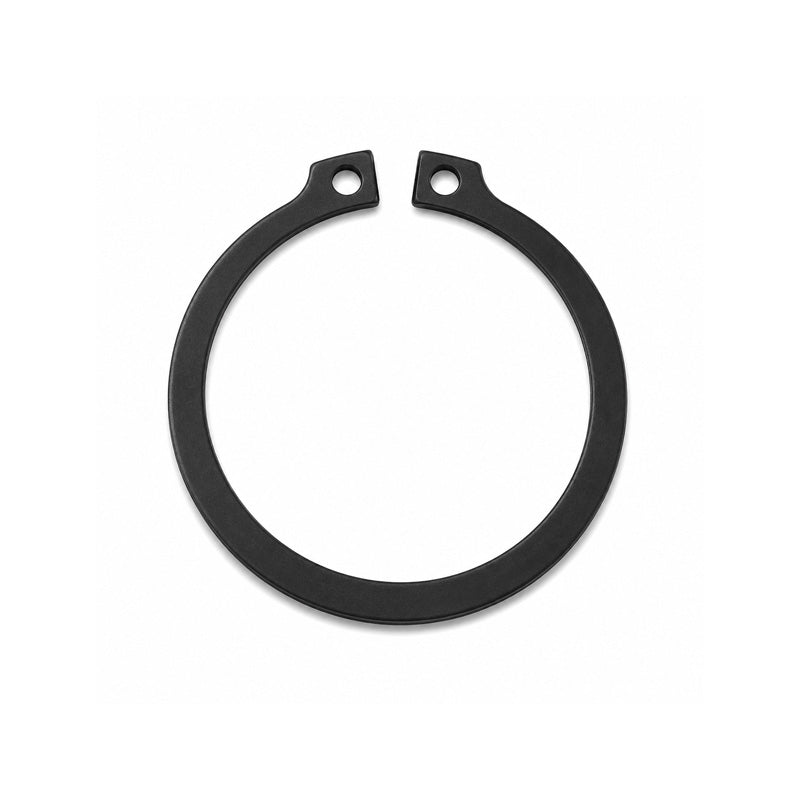

External Circlip for 115mm Shaft Diameter Un-Sprung Diameter 108mm
External Circlip for 115mm Shaft Diameter Un-Sprung Diameter 108mm
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
Equivalent to: D1400-115
In stock
Price Break
5+
€4,74
10+
€4,55
20+
€4,45
50+
€4,31
100+
€4,22
500+
€3,98
1000+
€3,35
Description
Description
|
External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
Equivalent: D1400-115
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 108mm
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 115mm
- Thickness:
- 4mm
- Groove Diameter:
- 111mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size | 115mm |
| Circlip thickness s | 4mm |
| Thickness tolerance | -0.1mm |
| Unstressed diameter d3 | 108mm |
| Unstressed diameter tolerance | +0.54/-1.30mm |
| Lug a | 10.6mm |
| Beam b | 9.8mm |
| d5 | 3.5mm |
| Weight | 84g |
| --- | Groove Details |
| Groove diameter | 111mm |
| Groove tolerance | -0.54mm |
| Minimum groove width | 4.15mm |
| Groove depth | 2.00 mm |
