SKU: DGE17FW-DURB

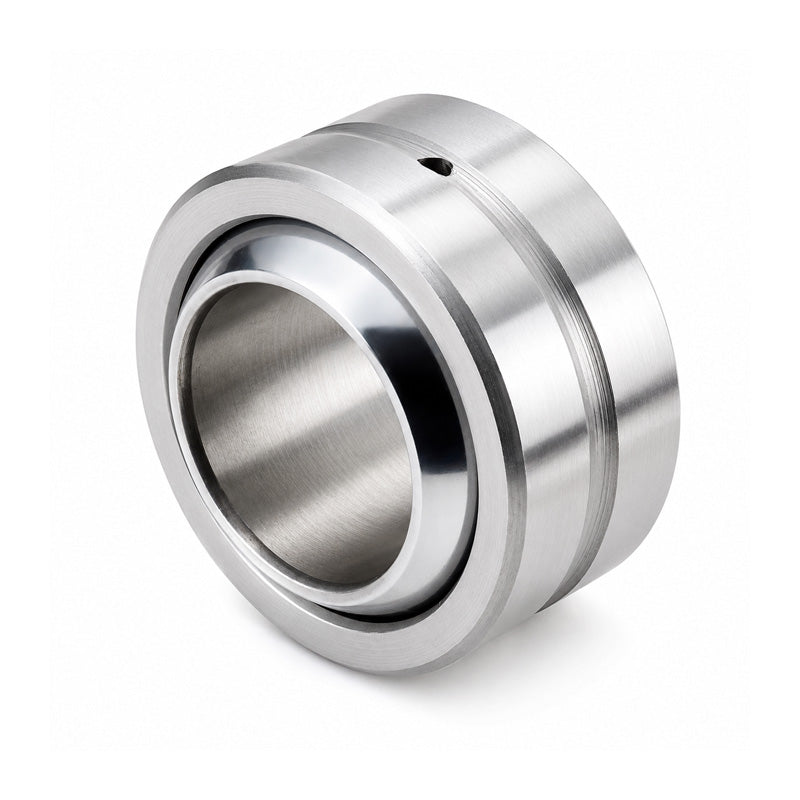

Durbal DGE17FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 17x35x20mm
Durbal DGE17FW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 17x35x20mm
Regular price
€21,29
ex VAT
Regular price
Sale price
€21,29
ex VAT
Equivalent to: GE17FW GEH17C
In stock
Price Break
10+
€18,95
19+
€17,88
29+
€17,67
39+
€17,46
49+
€17,24
74+
€17,03
99+
€15,97
199+
€15,75
249+
€15,54
499+
€15,33
999+
€14,90
Couldn't load pickup availability
Description
Description
DURBAL Radial-Spherical Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a heat-treated steel outer ring lined with bronze - PTFE-composite. Suitable for use with high unidirectional loads. Sliding combination: Steel with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.
Note: Wider joint ball and larger outside diameter compared to DGE_UK series, to enable higher load ratings and larger tilt angle
Up to size 12 joint ball is hard chromium plated
Equivalent: GE17FW GEH17C
- Brand / Quality:
- Durbal - High Quality
- Inside Diameter:
- 17mm
- Liner Type:
- PTFE Lined

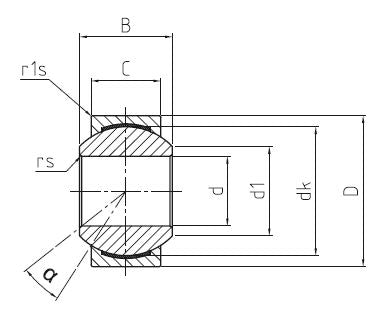

Technical
Technical
| d | 17mm |
|---|---|
| d1 | 21mm |
| D | 35mm |
| dk | 29mm |
| B | 20mm |
| C | 12mm |
| rs | 0.3mm |
| r1s | 0.3mm |
| tilt angle α | 19 deg |
| weight | 0.083kg |
| basic load rating dyn C | 31 kN |
| basic load rating stat Co | 78 kN |
| radial clearance CN | 5-35 µm |
