SKU: DKRCFB-08-13-AG-FLEX

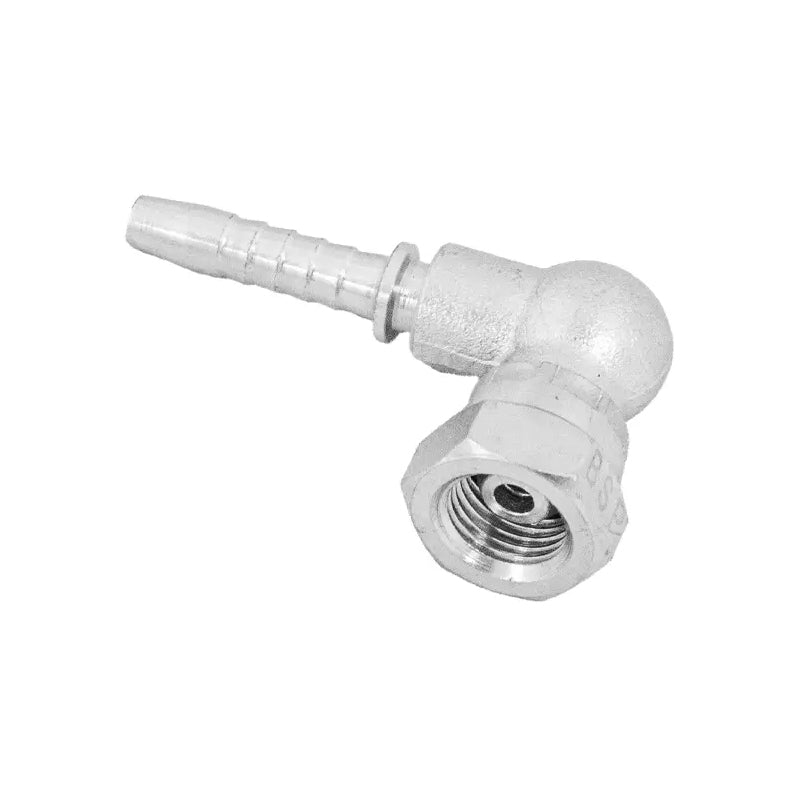

FLEXEQUIP/VOSS 1/2 inch BSP Female Two Piece Hose Fitting with 90 Degree Angle Elbow and 27mm Crimp Nut - Allow 2-3 Days
In stock
Price Break
Description
FLEXEQUIP/VOSS Female Two Piece Hose Fitting with 90 Degree Angle Elbow and Crimp Nut: These hose fittings are forged ball-type fittings, commonly used in the UK and Ireland for agricultural and standard hydraulic applications. Featuring a BSP thread and a 90 degree angle, this compact elbow fitting meets ISO 12151-6 (ISO 8434-6) standards, ensuring reliable and leak-free performance. Precision-engineered for perfect alignment between fittings and couplings, it offers exceptional durability and assembly reliability. Built on decades of expertise, this fitting provides versatile, long-lasting performance, ensuring the efficiency of your hydraulic systems.
Benefits: Precision engineered, provide perfect alignment, leakage and assembly reliability
- Brand / Quality:
- FLEXEQUIP/VOSS - High Quality
- Thread Size:
- 1/2 inch BSP
- Length:
- 58mm
- Type:
- DKRCFB
- Angle:
- 90 degrees
Technical
| Hose Bore | 1/2 inch |
|---|---|
| Thread (d2) | 1/2 inch |
| DN Size | 13mm |
| Total Length (lg) | 58mm |
| Length (lh) | 27mm |
| Cut Off (lx) | 27mm |
| Bore Size (dx) | 13mm |
| Nut Size (SW) | 27mm |
| Angle | 90 degrees |
| Weight | 0.121 kg |
