SKU: EMN50-21-501-DURB

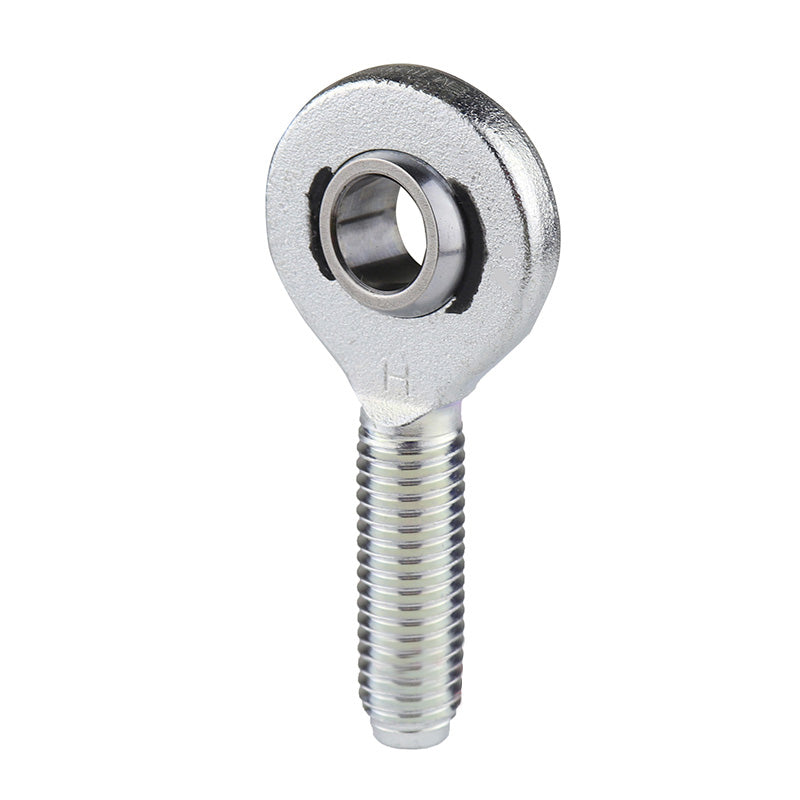

Durbal EMN50-21-501 Maintenance Required Right Hand Metric Steel Male Rod End M45x3 Thread
Equivalent to: GAR50DO SA50ES
In stock
Price Break
Description
DURBAL Heavy-Duty Maintenance Required Male Rod Ends with Pressed Spherical-Plain Bearing: Threaded male rod end consisting of a galvanised, tempered, forged steel housing with a steel, hardened, ground, phospated outer ring with oil groove and drill holes and a steel joint ball (Outer ring has a single split from size 15). Primary application in situations of alternating stresses or impact loads and preferred in situations of large swivelling movements. Made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Rod ends from size 15 can be greased subsequently by means of a funnel-type lubrication nipple, and from size 20 by means of a conical grease nipple. Temperature range: -40 deg C to +200 deg C.
Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
Equivalent: GAR50DO SA50ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M45x3
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 50mm
Technical
| Thread Direction | -501 (Right) |
|---|---|
| d | 50mm |
| G (Thread) | M45x3mm |
| B | 35mm |
| C1 | 28mm |
| h | 185mm |
| d1 | 55mm |
| d2 | 112mm |
| dk | 66mm |
| l1 | 110mm |
| l2 | 241mm |
| l7 | 60mm |
| tilt angle α | 6 deg |
| weight | 3.28kg |
| basic load rating dyn C | 132 kN |
| basic load rating stat Co | 290 kN |
| radial clearance CN | 40-120 µm |
