SKU: ESEHE202-SNR

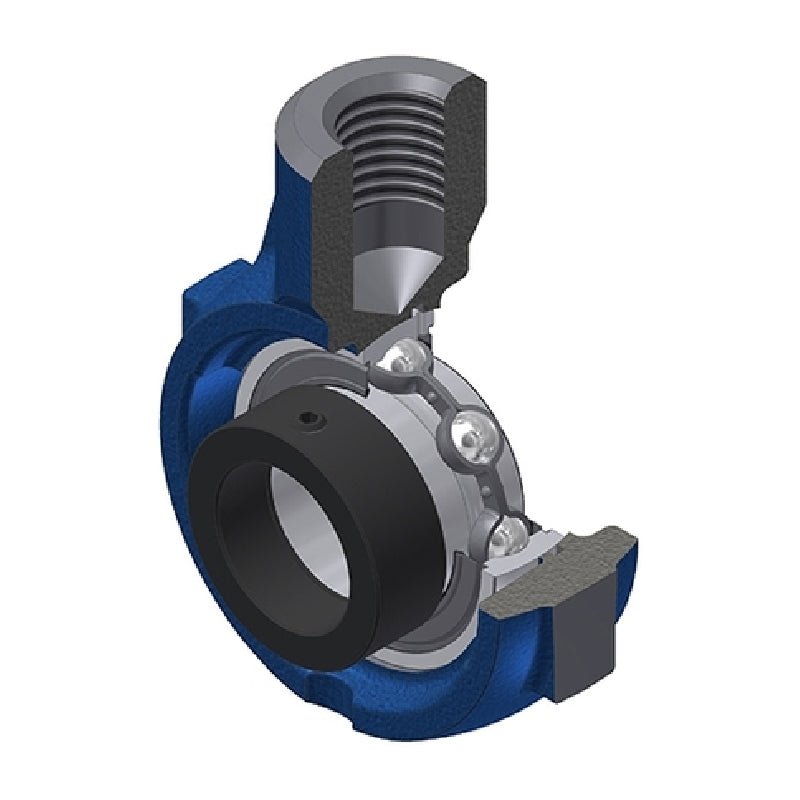

SNR ESEHE202 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
SNR ESEHE202 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
Regular price
€31,95
ex VAT
Regular price
Sale price
€31,95
ex VAT
In stock
Price Break
3+
€26,29
4+
€25,23
9+
€24,70
19+
€23,90
49+
€23,37
99+
€22,04
499+
€18,59
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- ESEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 15mm |
| A | 25mm |
| A2 | 30mm |
| B1 | 28.6mm |
| d1 | 27.2mm |
| E | 21mm |
| H | 65mm |
| L | 91mm |
| L1 | 58mm |
| L3 | 38mm |
| S | 6.5mm |
| G | M6x1 |
| G1 | M16 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.63 kg |
