SKU: ESFD204-SNR

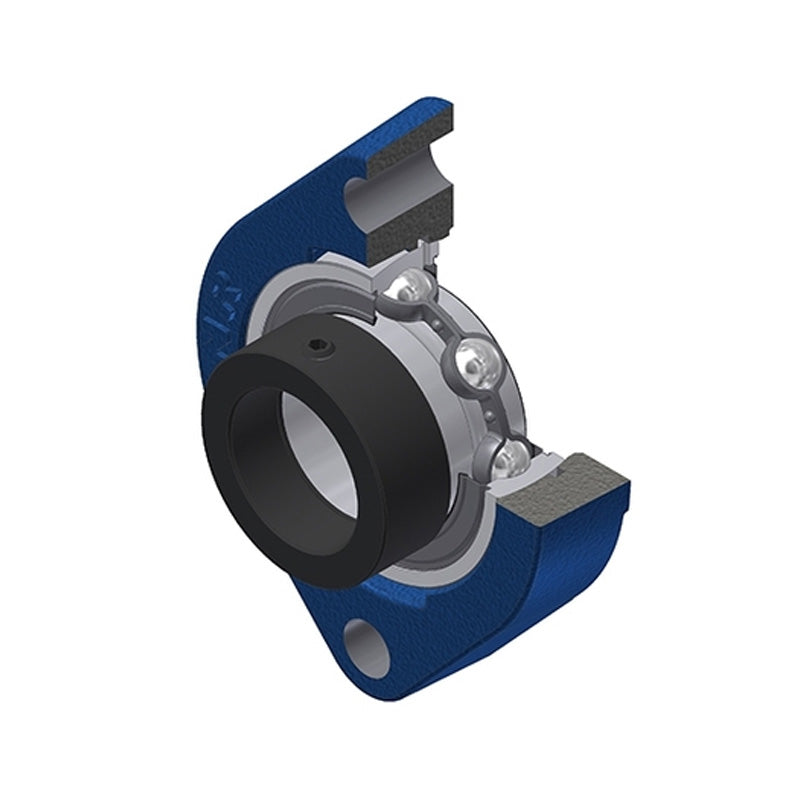

SNR ESFD204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFD204 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
€27,40
ex VAT
Regular price
Sale price
€27,40
ex VAT
In stock
Price Break
10+
€24,39
19+
€23,02
29+
€22,74
39+
€22,47
49+
€22,19
74+
€21,92
99+
€20,55
199+
€20,28
249+
€20,00
499+
€19,73
999+
€19,18
Couldn't load pickup availability
Description
Description
ESFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- ESFD
- Bolt Hole Centres:
- 71.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| A | 17mm |
| A2 | 32.9mm |
| B | 21.4mm |
| e | 9.5mm |
| H | 90.5mm |
| J | 71.4mm |
| L | 66.5mm |
| N | 9mm |
| S | 7.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.35 kg |
