SKU: ESFD207-SNR

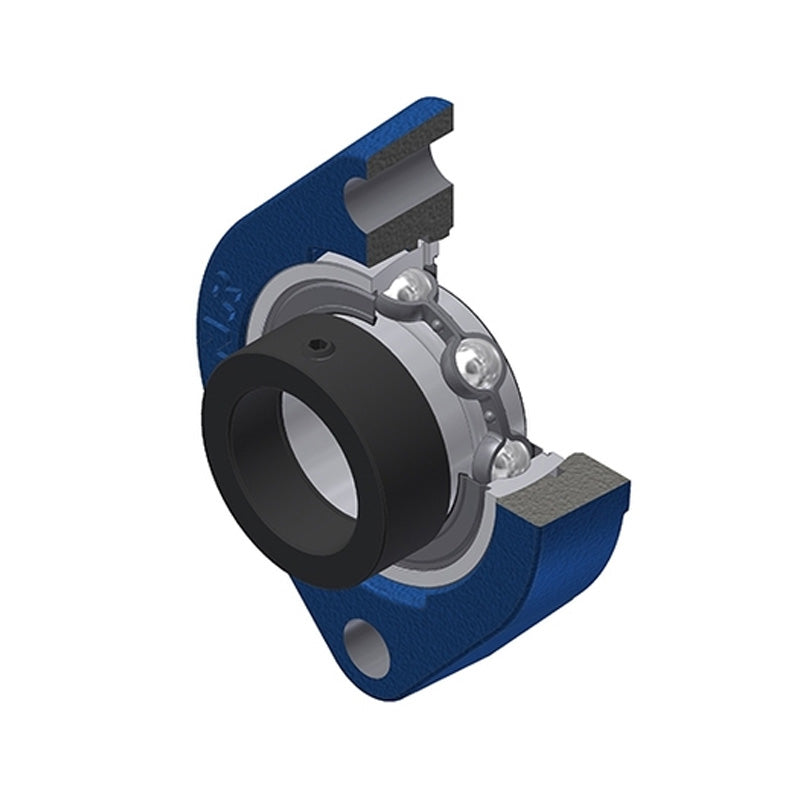

SNR ESFD207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFD207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
€42,60
ex VAT
Regular price
Sale price
€42,60
ex VAT
In stock
Price Break
10+
€37,91
19+
€35,78
29+
€35,36
39+
€34,93
49+
€34,51
74+
€34,08
99+
€31,95
199+
€31,52
249+
€31,10
499+
€30,67
999+
€29,82
Couldn't load pickup availability
Description
Description
ESFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- ESFD
- Bolt Hole Centres:
- 100mm
Technical
Technical

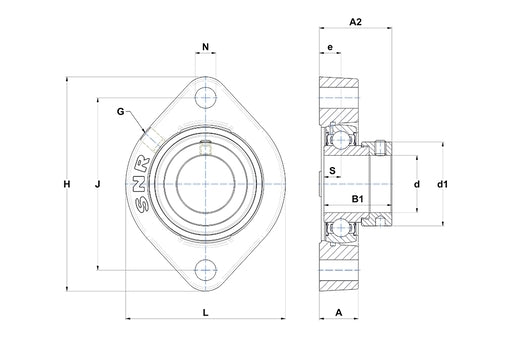

| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 22mm |
| A2 | 41.8mm |
| B | 25.4mm |
| e | 12.4mm |
| H | 126mm |
| J | 100mm |
| L | 94mm |
| N | 11mm |
| S | 9.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1 kg |
