SKU: ESFD207M12-SNR

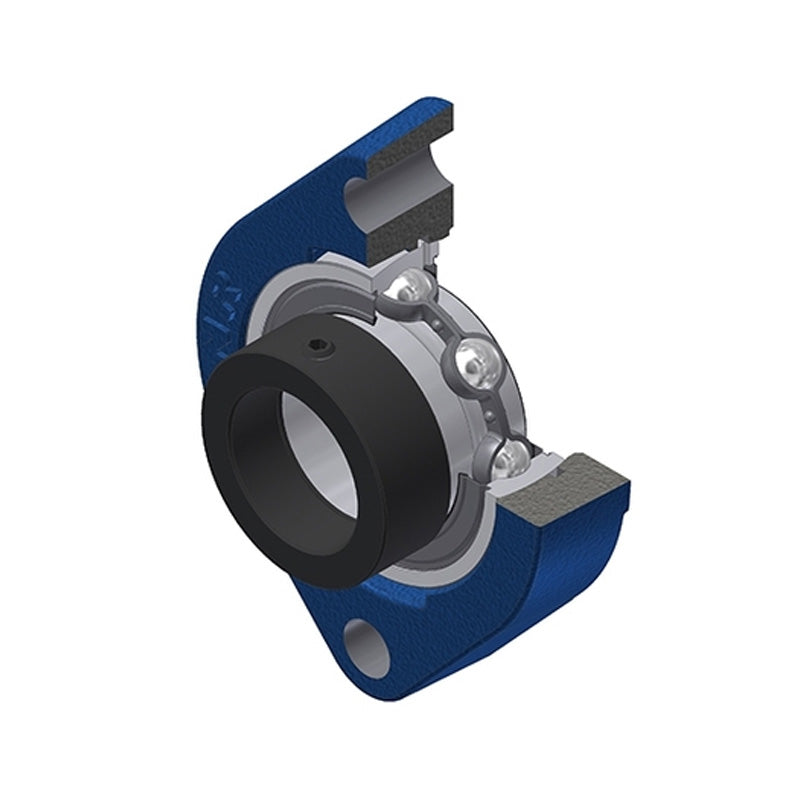

SNR ESFD207M12 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFD207M12 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
€51,51
ex VAT
Regular price
Sale price
€51,51
ex VAT
In stock
Price Break
5+
€50,99
10+
€48,93
20+
€47,90
50+
€46,36
100+
€45,33
500+
€42,75
1000+
€36,06
Couldn't load pickup availability
Description
Description
ESFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- ESFD
- Bolt Hole Centres:
- 100mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 22mm |
| A2 | 41.8mm |
| B | 25.4mm |
| e | 12.4mm |
| H | 126mm |
| J | 100mm |
| L | 94mm |
| M12 | S |
| 9.5mm | G |
| R1/8″ | --- |
| Load rating | Dynamic load C |
| 25.7 kN | Static load C0 |
| 15.2 kN | --- |
| Unit information | Operating temperature min. |
| -20°C | Operating temperature max. |
| 100°C | Recommended tightening torque for set screw |
| 11.5 Nm | Mass |
| 1 kg | N/A |
