SNR ESFEE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESFEE205 Metric Four Bolt Cast Iron Round Flanged Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€41,19
ex VAT
Regular price
Sale price
€41,19
ex VAT
In stock
Price Break
5+
€40,78
10+
€39,13
20+
€38,31
50+
€37,07
100+
€36,25
500+
€34,19
1000+
€28,83
Couldn't load pickup availability
Description
Description

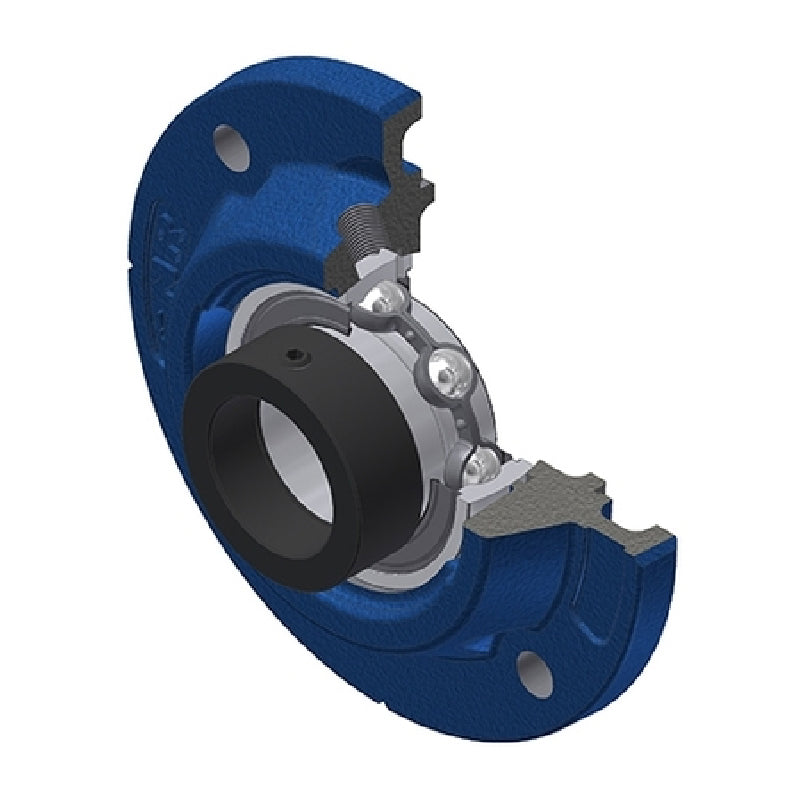

ESFEE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- ESFEE
- Pitch Circle Diameter:
- 92mm
Technical
Technical

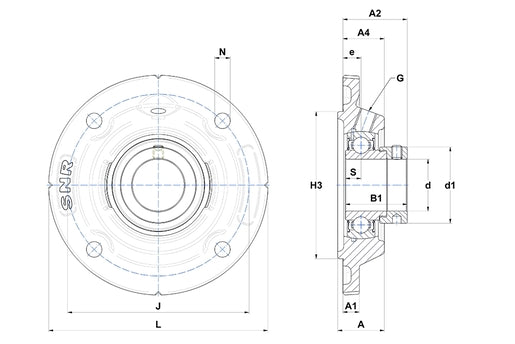

| --- | Dimensions |
|---|---|
| Shaft diameter | 25mm |
| A | 23.5mm |
| A1 | 9mm |
| A2 | 32.9mm |
| A4 | 20.5mm |
| B | 21.4mm |
| B1 | 30.9mm |
| d1 | 37.4mm |
| e | 9.5mm |
| H3 | 75mm |
| J | 92mm |
| L | 115mm |
| N | 9mm |
| S | 7.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.79 kg |
