SKU: ESPA209-SNR

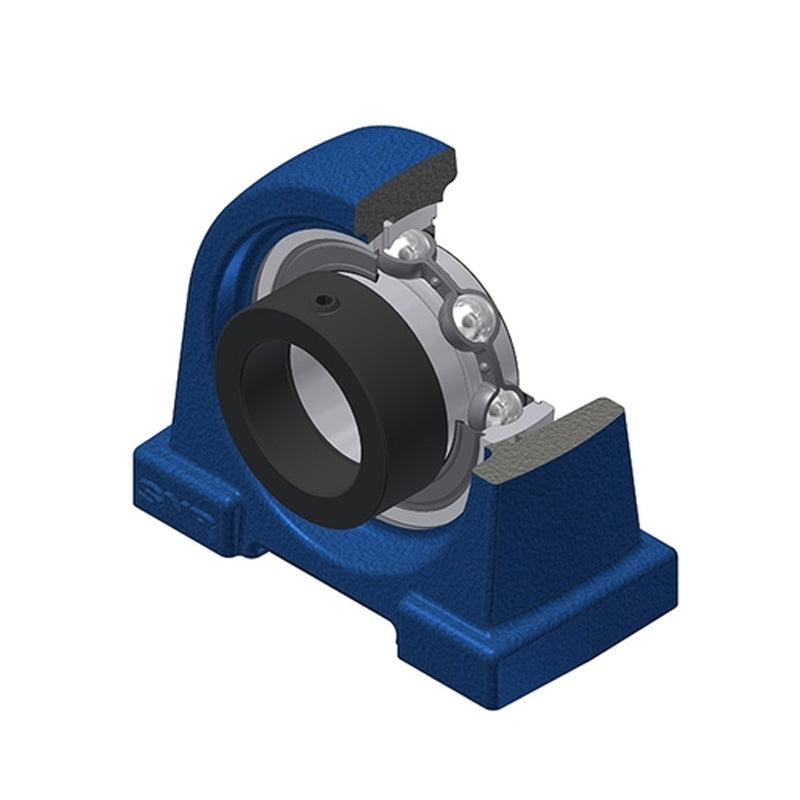

SNR ESPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
SNR ESPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
Regular price
€64,95
ex VAT
Regular price
Sale price
€64,95
ex VAT
In stock
Price Break
3+
€54,86
4+
€52,64
9+
€51,53
19+
€49,87
49+
€48,76
99+
€45,99
499+
€38,79
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- ESPA
- Bolt Hole Centres:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 60mm |
| A1 | 32mm |
| B | 30.2mm |
| d1 | 62mm |
| E | 25mm |
| H | 54.2mm |
| H1 | 13mm |
| H2 | 108mm |
| J | 90mm |
| L | 120mm |
| L1 | 42mm |
| N | M14 |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.19 kg |
