SKU: ESPE208N-SNR

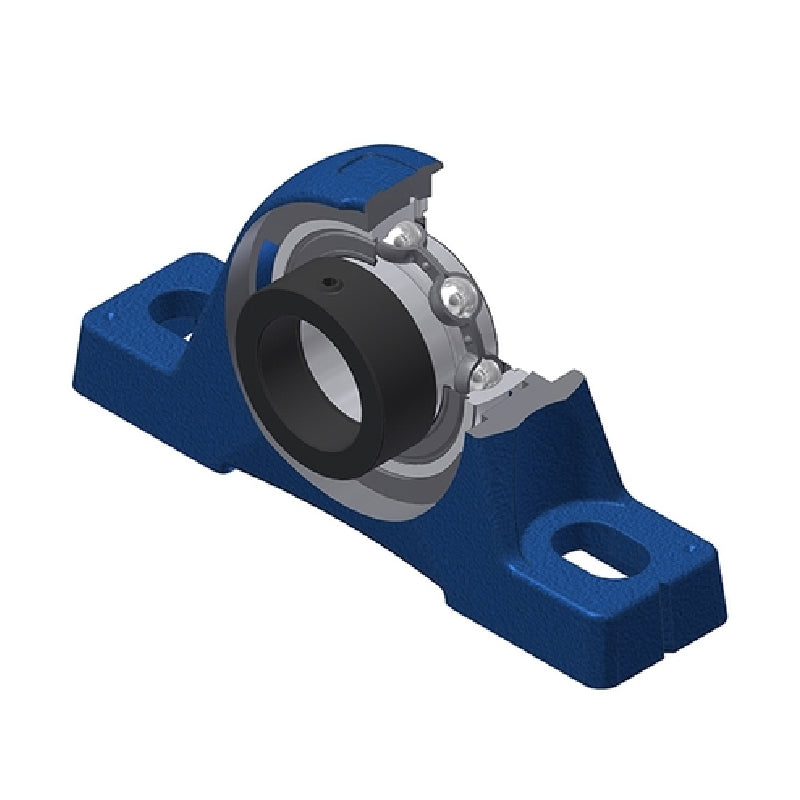

SNR ESPE208N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPE208N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€45,12
ex VAT
Regular price
Sale price
€45,12
ex VAT
In stock
Price Break
10+
€40,16
19+
€37,90
29+
€37,45
39+
€37,00
49+
€36,55
74+
€36,10
99+
€33,84
199+
€33,39
249+
€32,94
499+
€32,49
999+
€31,58
Couldn't load pickup availability
Description
Description
ESPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESPE
- Bolt Hole Centres:
- 138mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 48mm |
| A1 | 30mm |
| B | 30.2mm |
| d1 | 58mm |
| H | 49.2mm |
| H1 | 19mm |
| H2 | 99mm |
| J | 138mm |
| L | 179mm |
| L1 | 53mm |
| N | 14mm |
| N1 | 26mm |
| S | 11mm |
| G | R1/8" |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.85 kg |
