SKU: ESPH210-SNR

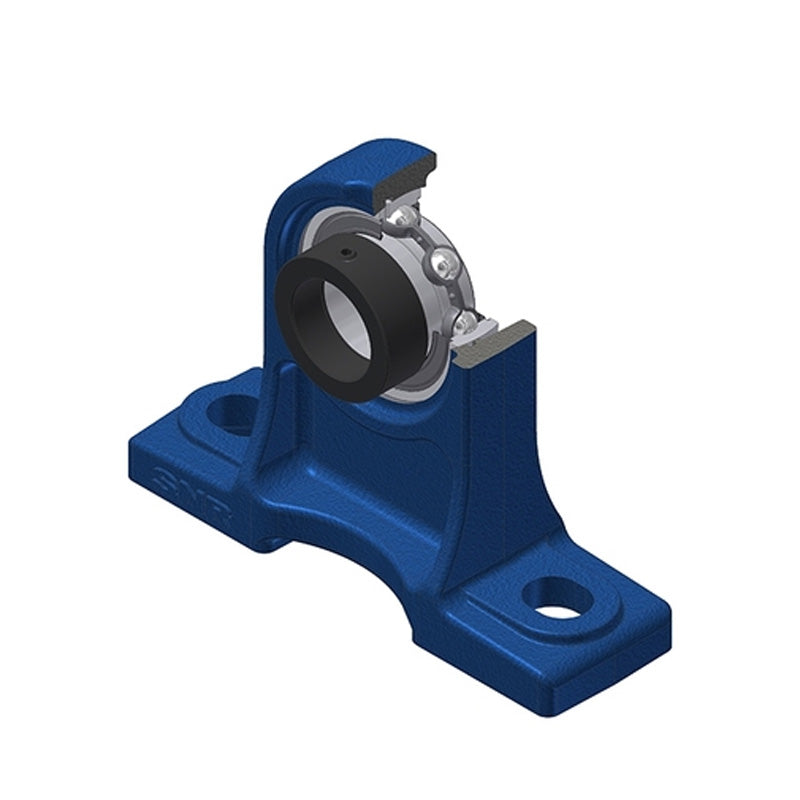

SNR ESPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price €77,95 ex VAT
Regular price Sale price €77,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,80
4+ €63,14
9+ €61,81
19+ €59,81
49+ €58,48
99+ €55,16
499+ €46,52
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

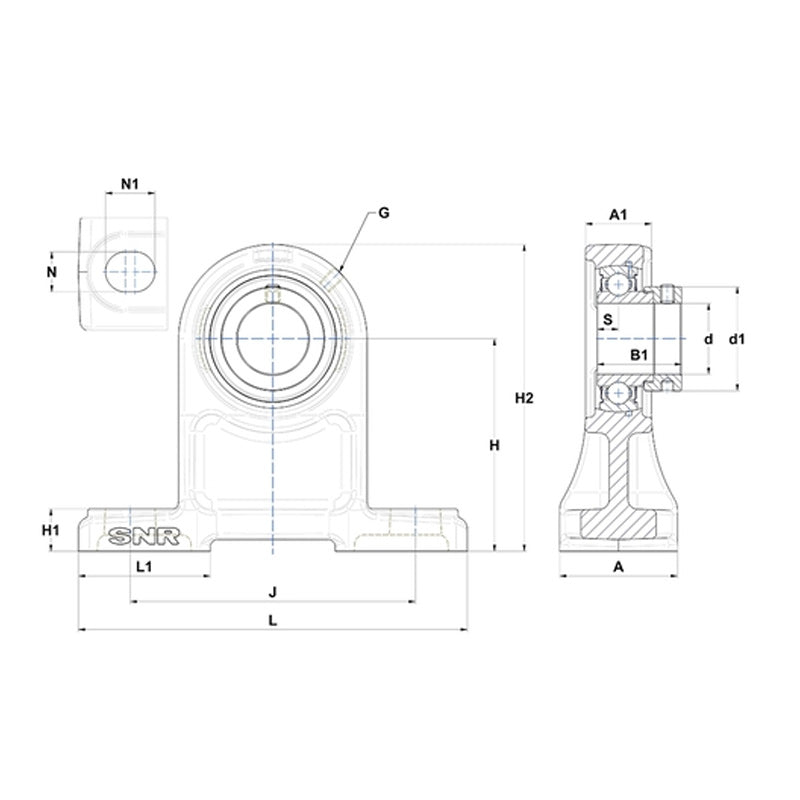

--- Dimensions
Shaft diameter d 50mm
A 70mm
A1 36mm
B 30.2mm
d1 67.2mm
H 110mm
H1 22mm
H2 165mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 3.6 kg
