SKU: EXFC213N-SNR

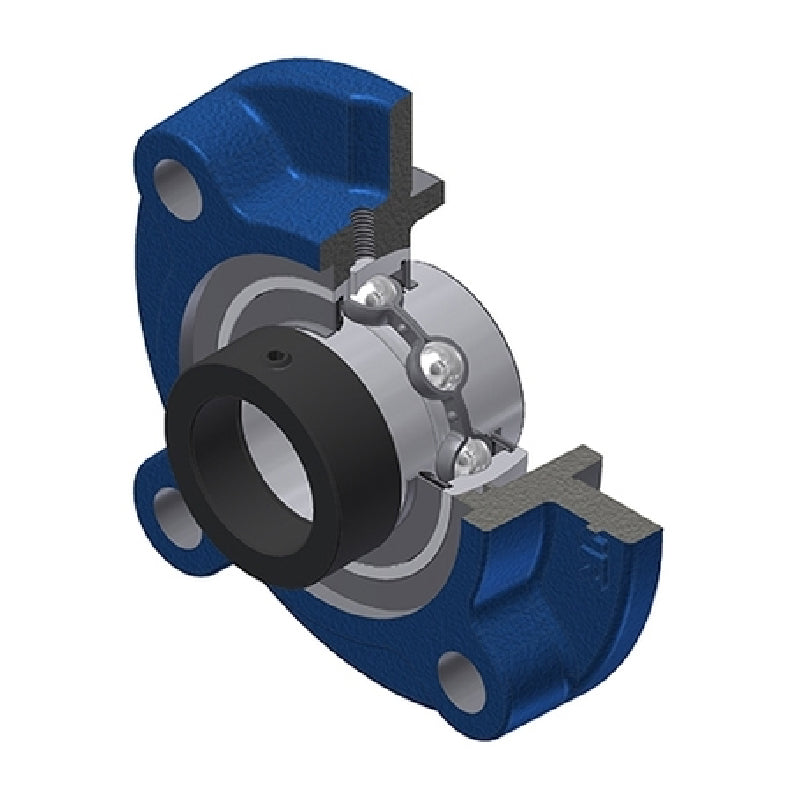

SNR EXFC213N Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC213N Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Eccentric Collar Insert - Allow 2-3 Days
Regular price €181,95 ex VAT
Regular price Sale price €181,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,62
4+ €147,41
9+ €144,31
19+ €139,65
49+ €136,55
99+ €128,79
499+ €108,62
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 65mm
A 49mm
A1 15mm
A2 67.6mm
A4 35mm
B 68.2mm
B1 85.7mm
d1 86mm
e 16mm
H3 145mm
J 170mm
L 205mm
N 19mm
S 34.1mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.99 kg
