SKU: EXFL210N-SNR

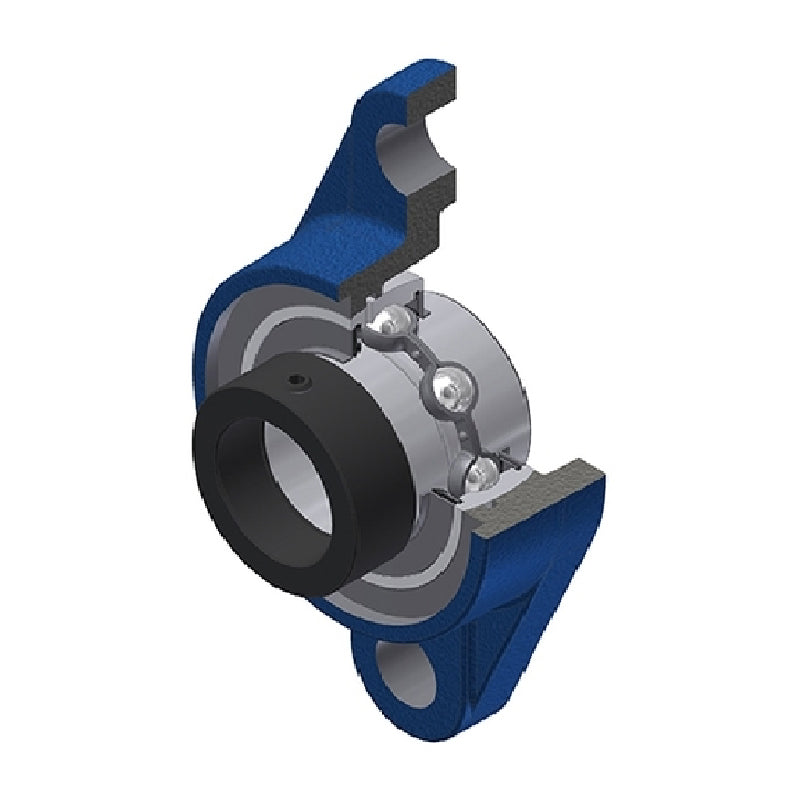

SNR EXFL210N Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFL210N Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price €90,95 ex VAT
Regular price Sale price €90,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €76,80
4+ €73,70
9+ €72,15
19+ €69,82
49+ €68,27
99+ €64,39
499+ €54,31
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 16mm
A2 60.1mm
B 49.2mm
B1 62.7mm
d1 67.2mm
e 22mm
H 197mm
J 157mm
L 115mm
N 19mm
S 24.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.34 kg
