SKU: EXFL214-SNR

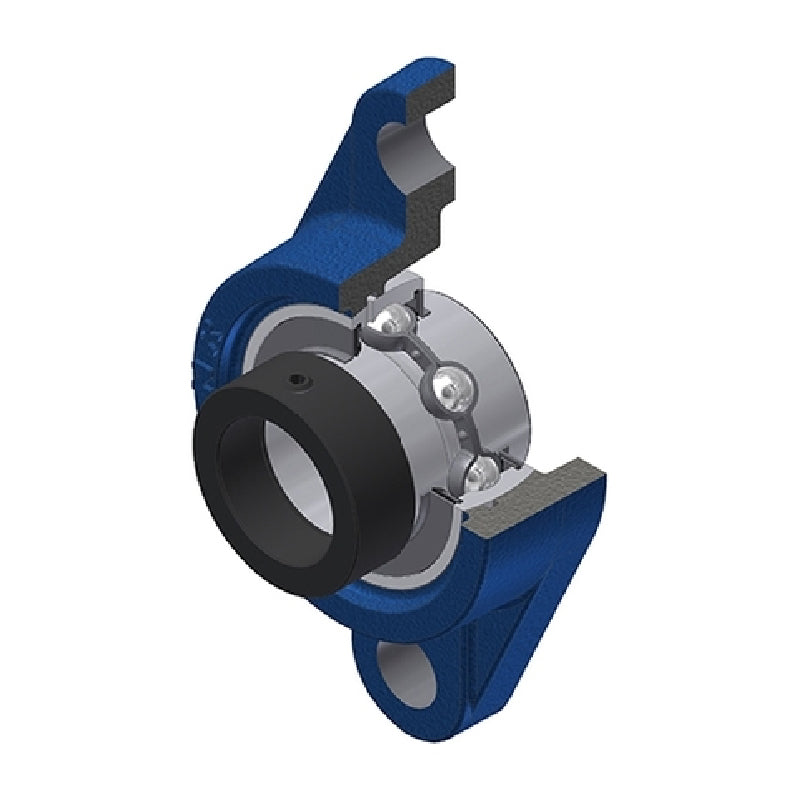

SNR EXFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFL214 Metric Two Bolt Cast Iron Oval Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
€207,95
ex VAT
Regular price
Sale price
€207,95
ex VAT
In stock
Price Break
3+
€175,44
4+
€168,35
9+
€164,81
19+
€159,49
49+
€155,94
99+
€147,08
499+
€124,05
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
EXFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- EXFL
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 54mm |
| A1 | 20mm |
| A2 | 82.6mm |
| B | 68.2mm |
| B1 | 85.7mm |
| d1 | 96.8mm |
| e | 31mm |
| H | 265mm |
| J | 216mm |
| L | 160mm |
| N | 23mm |
| S | 34.1mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 5.86 kg |
