SKU: EXP207-SNR

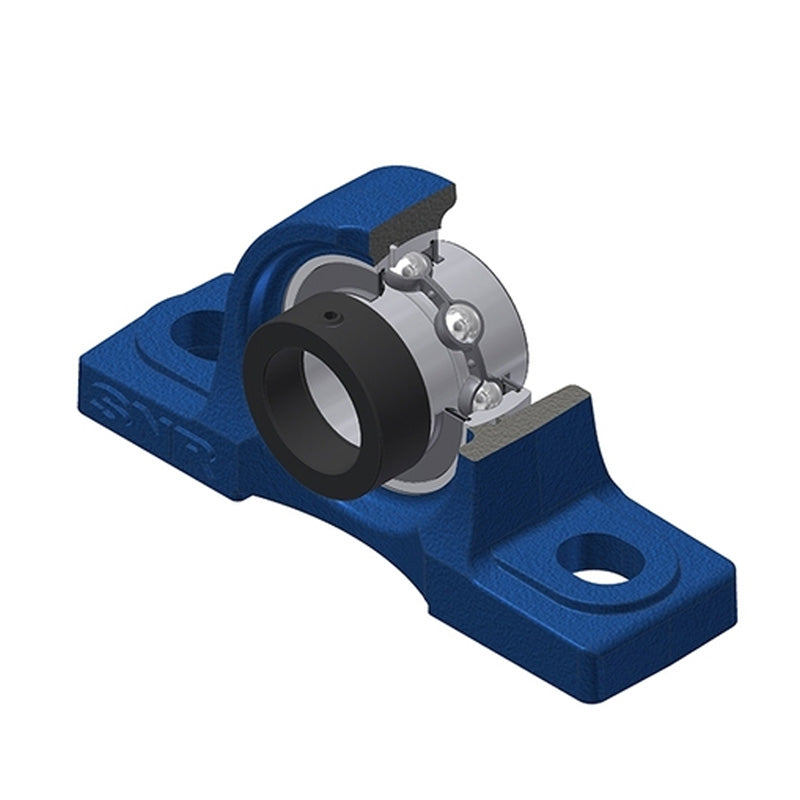

SNR EXP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price €45,95 ex VAT
Regular price Sale price €45,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €34,31
4+ €32,39
9+ €32,00
19+ €31,62
49+ €31,23
99+ €30,84
499+ €28,92
999+ €28,53
1999+ €28,15
2999+ €27,76
4999+ €26,99
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 48mm
A1 31mm
B 37.6mm
d1 51.1mm
H 47.6mm
H1 19mm
H2 94mm
J 127mm
L 167mm
L1 54mm
N 17mm
N1 21mm
S 18.8mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.8 kg
