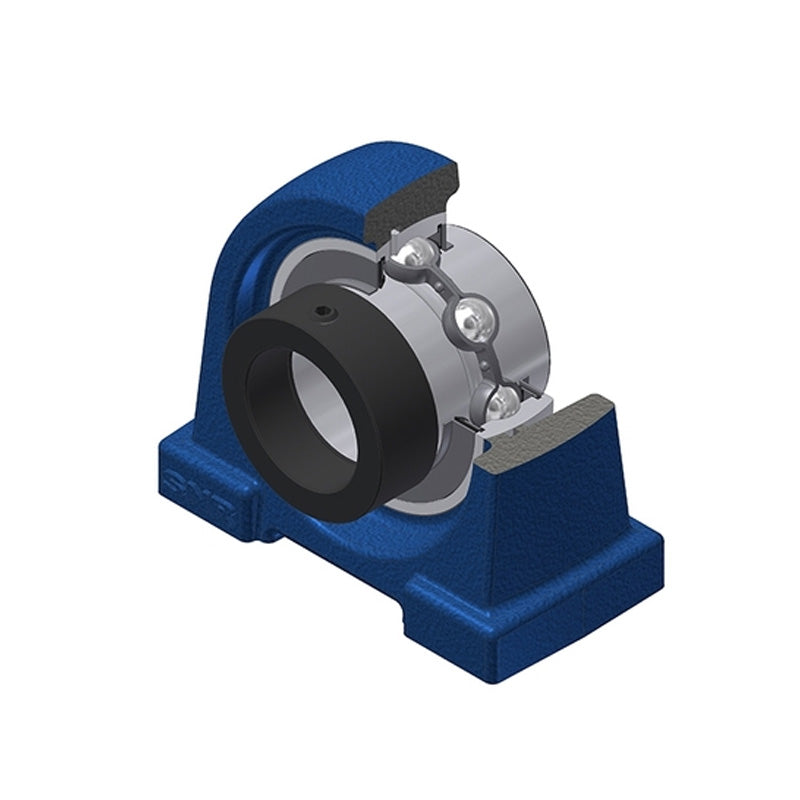

SNR EXPA207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
SNR EXPA207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
Regular price
€51,95
ex VAT
Regular price
Sale price
€51,95
ex VAT
In stock
Price Break
3+
€43,88
4+
€42,10
9+
€41,22
19+
€39,89
49+
€39,00
99+
€36,79
499+
€31,02
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- EXPA
- Bolt Hole Centres:
- 80mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| A | 48mm |
| A1 | 27mm |
| B | 37.6mm |
| d1 | 51.1mm |
| E | 20mm |
| H | 47.6mm |
| H1 | 13mm |
| H2 | 95mm |
| J | 80mm |
| L | 110mm |
| L1 | 30mm |
| N | M14 |
| S | 18.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.6 kg |
