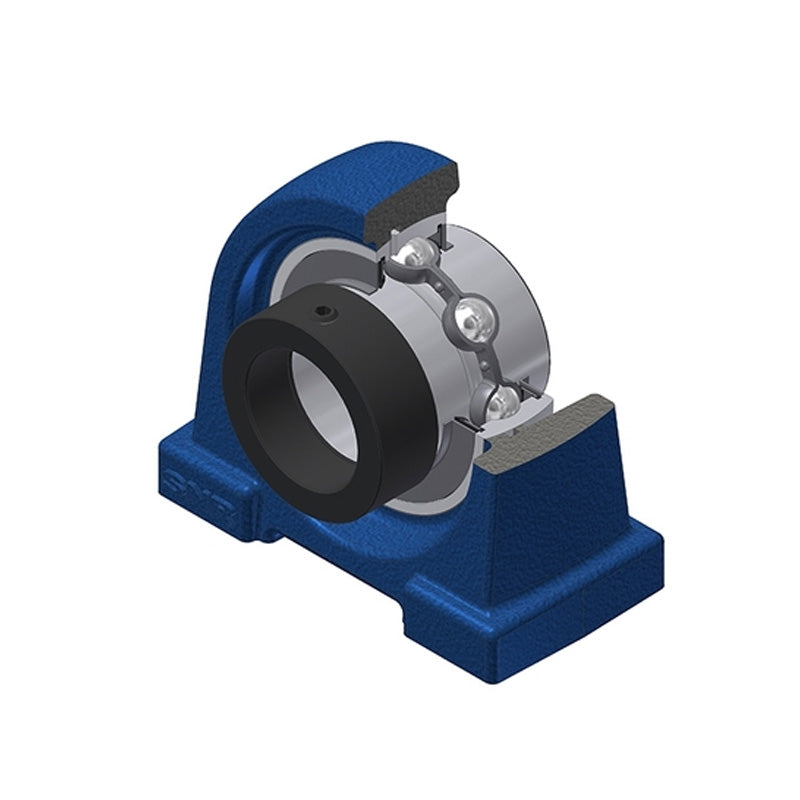

• SNR EXPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
1 1

SKU: EXPA208-SNR

SNR EXPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days

SNR EXPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
€64,95 ex VAT
€64,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €54,84
4+ €52,62
9+ €51,51
19+ €49,85
49+ €48,74
99+ €45,97
499+ €38,77
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
EXPA
Bolt Hole Centres:
84mm
Technical
--- Dimensions
Shaft diameter 40mm
A 54mm
A1 28mm
B 42.8mm
d1 58mm
E 20mm
H 49.2mm
H1 13mm
H2 100mm
J 84mm
L 116mm
L1 32mm
N M14
S 21.4mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.88 kg
