SKU: EXPE201N-SNR

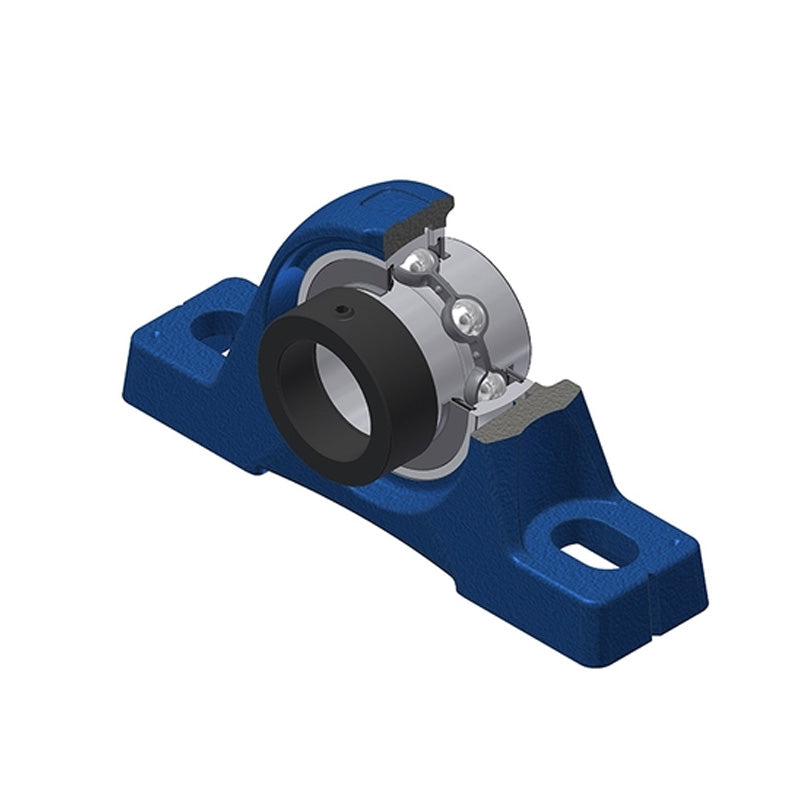

SNR EXPE201N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE201N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Eccentric Collar Insert - Allow 2-3 Days
Regular price €77,95 ex VAT
Regular price Sale price €77,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,82
4+ €63,16
9+ €61,83
19+ €59,83
49+ €58,50
99+ €55,18
499+ €46,54
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 12mm
A 32mm
A1 19mm
B 34mm
d1 32.4mm
H 33.3mm
H1 14.5mm
H2 64mm
J 97mm
L 130mm
L1 40mm
N 11mm
N1 19mm
S 17mm
G R1/8
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.69 kg
