SKU: EXPE211-35-SNR

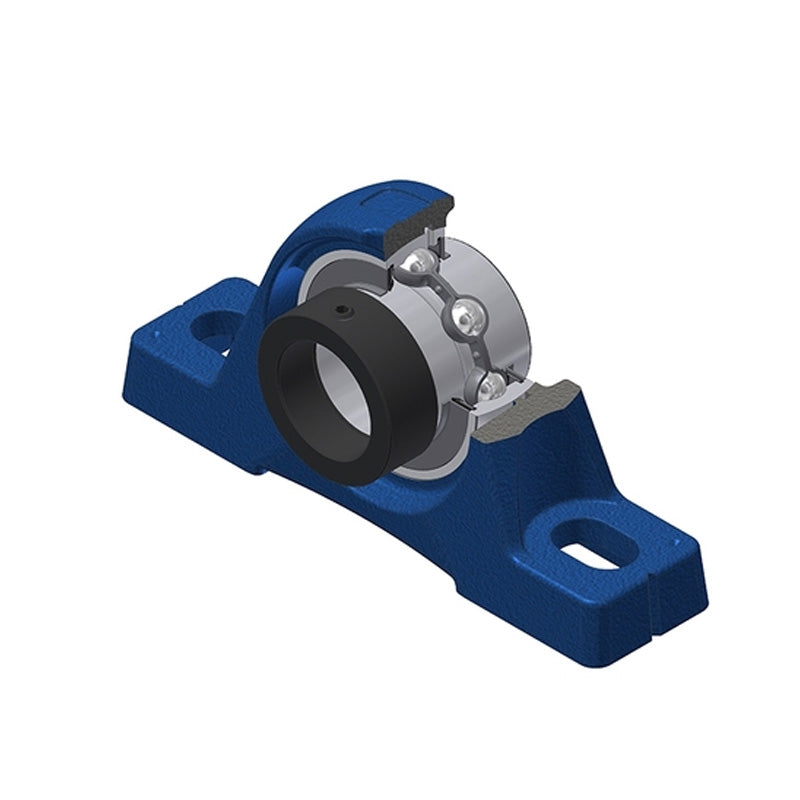

SNR EXPE211-35 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE211-35 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Eccentric Collar Insert - Allow 2-3 Days
Regular price €103,95 ex VAT
Regular price Sale price €103,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,70
4+ €84,16
9+ €82,39
19+ €79,73
49+ €77,96
99+ €73,53
499+ €62,01
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 2-3/16 inch
A 60mm
A1 35mm
B 55.4mm
d1 74.5mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 27.7mm
G R1/8
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 3.66 kg
