SKU: EXPLE211-SNR

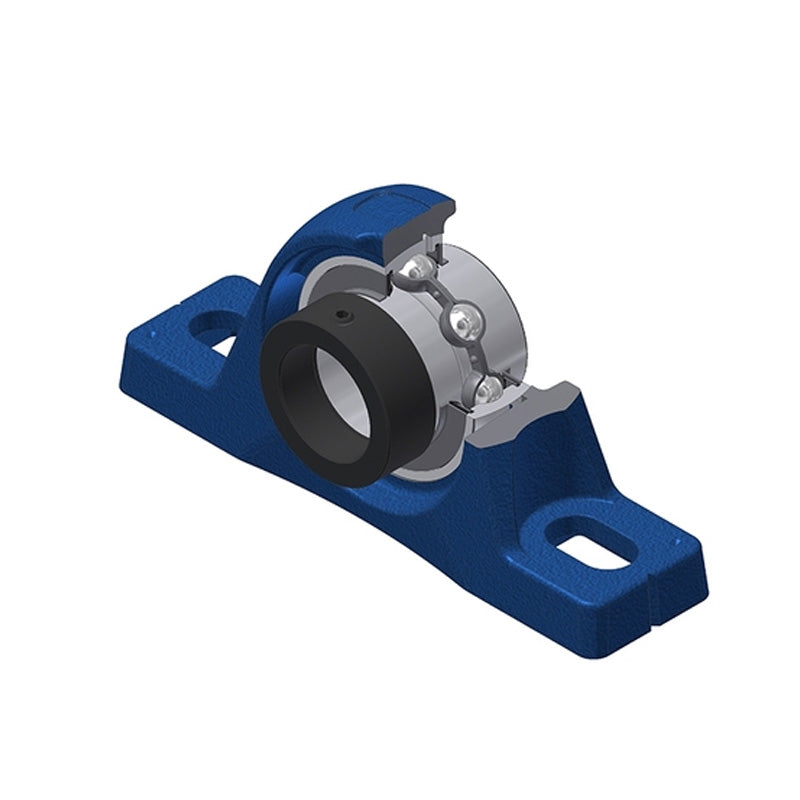

SNR EXPLE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPLE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price €103,95 ex VAT
Regular price Sale price €103,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,70
4+ €84,16
9+ €82,39
19+ €79,73
49+ €77,96
99+ €73,53
499+ €62,01
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 55mm
A 60mm
A1 39.5mm
B 55.4mm
d1 74.5mm
H 61.3mm
H1 23.2mm
H2 128mm
J 170.5mm
L 219.5mm
N 18mm
N1 26mm
S 27.7mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.19 kg
