SKU: EXT207-23-SNR

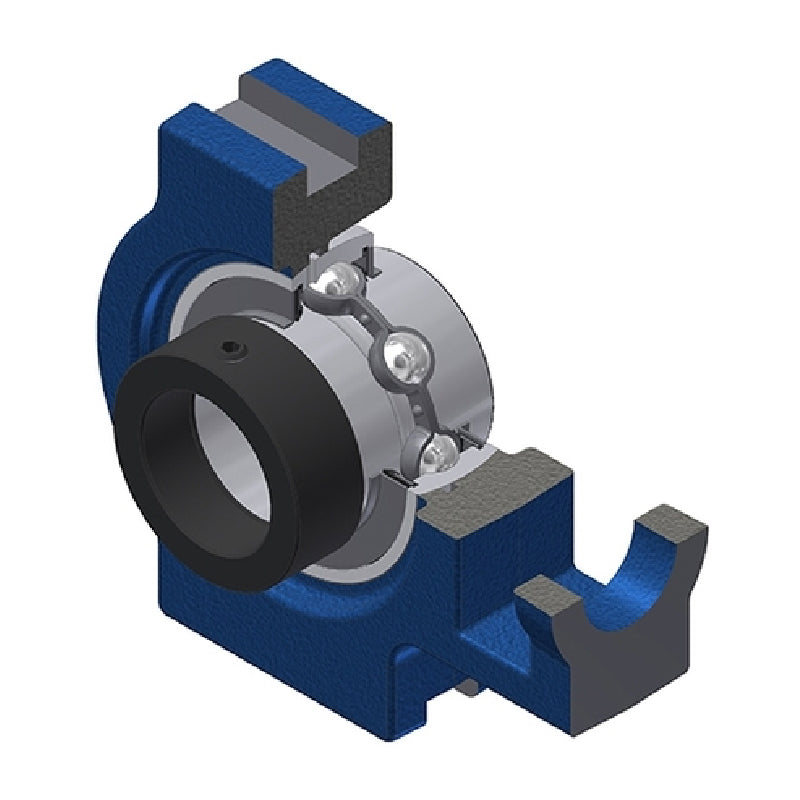

SNR EXT207-23 Imperial Cast Iron Take Up Unit with Eccentric Collar Insert 1-7/16 inch Bore - Allow 2-3 Days

SNR EXT207-23 Imperial Cast Iron Take Up Unit with Eccentric Collar Insert 1-7/16 inch Bore - Allow 2-3 Days
Regular price €64,95 ex VAT
Regular price Sale price €64,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €54,80
4+ €52,58
9+ €51,48
19+ €49,82
49+ €48,71
99+ €45,94
499+ €38,75
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 1-7/16 inch
A 37mm
A1 12mm
A2 30mm
B1 51.1mm
d1 51.1mm
H 102mm
H1 89mm
H2 64mm
L 129mm
L1 78mm
L2 13mm
L3 64mm
N 22mm
N1 16mm
N2 37mm
S 18.8mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.68 kg
