SKU: F.6700

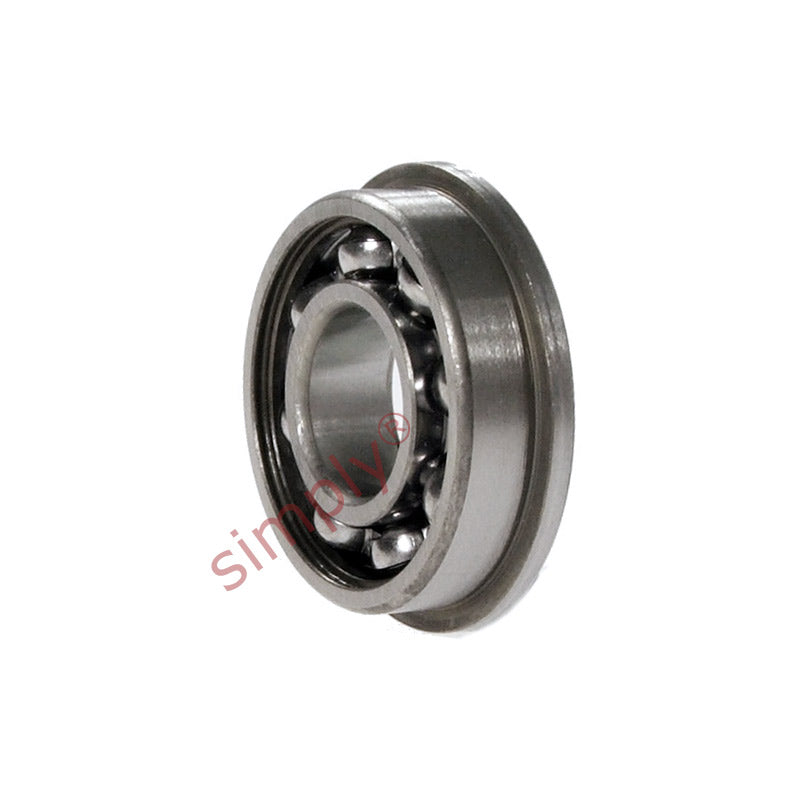

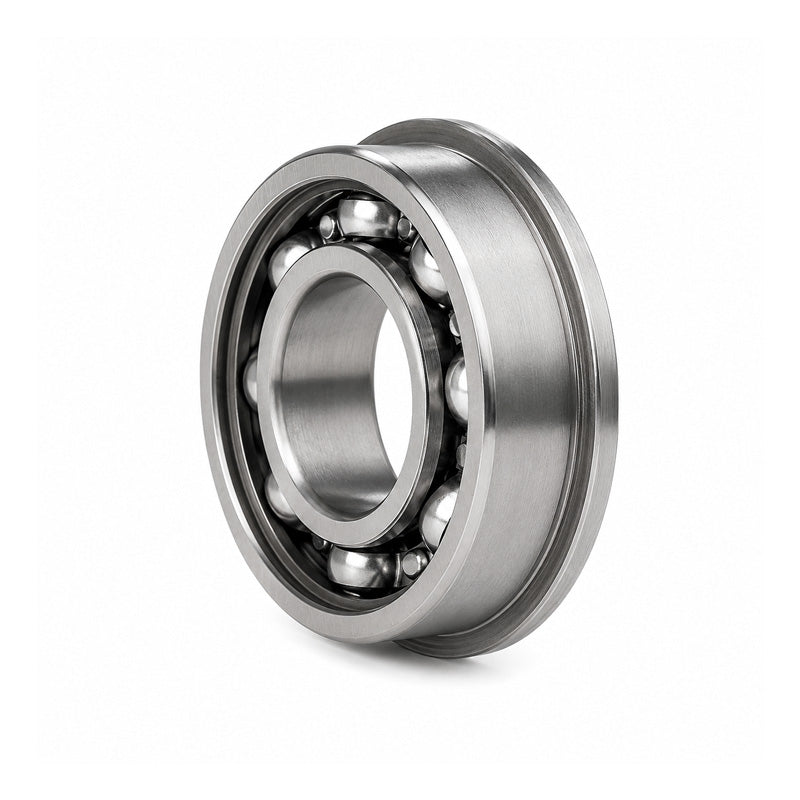

F6700 Budget Open Flanged Thin Section Deep Groove Ball Bearing 10x15x3mm
F6700 Budget Open Flanged Thin Section Deep Groove Ball Bearing 10x15x3mm
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
In stock
Price Break
5+
€5,29
9+
€4,99
19+
€4,93
24+
€4,87
49+
€4,81
74+
€4,76
99+
€4,46
199+
€4,40
249+
€4,34
499+
€4,28
999+
€4,16
Description
Description
|
Flanged Deep Groove Ball Bearings: Manufactured to the same principal sizes as standard bearings these have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports Benefits: Cost effective replacement bearing, Flanged design |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 15mm
- Width:
- 3mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside diameter d | 10mm |
|---|---|
| Outside diameter D | 15mm |
| Bearing width B | 3mm |
| Flange diameter P | 16.5mm |
| Flange width w | 0.8mm |
| Radius min | 0.15mm |
