SKU: FB-M08-MB

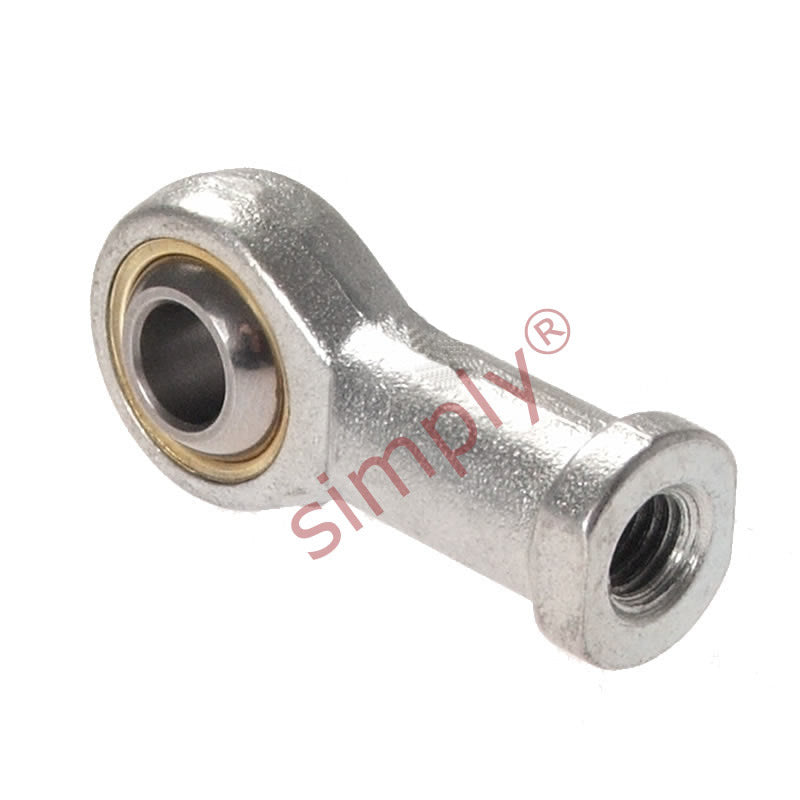

Branded FB-M08 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M8x1.25 Thread
Branded FB-M08 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M8x1.25 Thread
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
Equivalent to: PHS8
In stock
Price Break
10+
€7,61
19+
€7,18
29+
€7,10
39+
€7,01
49+
€6,93
74+
€6,84
99+
€6,41
199+
€6,33
249+
€6,24
499+
€6,16
999+
€5,99
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Equivalent: PHS8
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 8mm |
|---|---|
| Thread | M8x1.25 |
| W | 12mm |
| H | 9mm |
| D | 22mm |
| L1 | 36mm |
| L2 | 17mm |
| O | 10.4mm |
| AF | 14mm |
| Static load | 10450 N |
