SKU: FC1.3/4-RHP

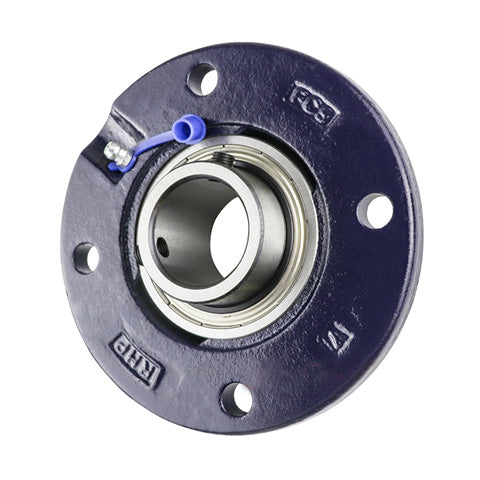

RHP FC1.3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert

RHP FC1.3/4-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
Regular price €105,95 ex VAT
Regular price Sale price €105,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €80,48
20+ €75,96
30+ €75,06
40+ €74,15
50+ €73,25
75+ €72,34
100+ €67,82
200+ €66,92
250+ €66,01
500+ €65,11
1000+ €63,30
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

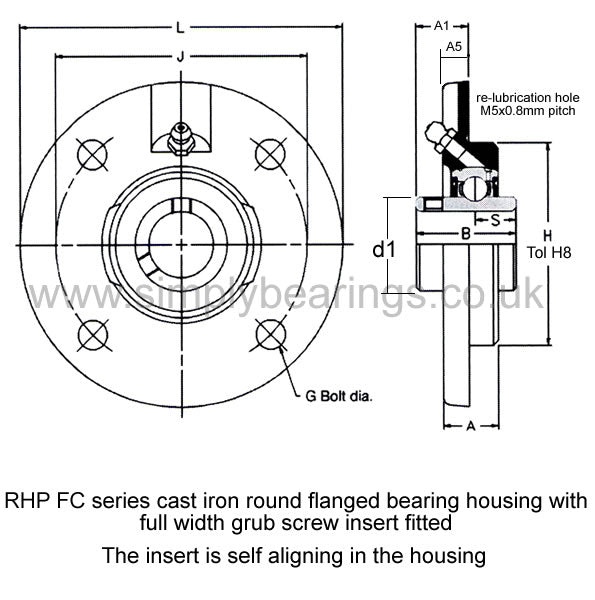

Technical
Bore 1-3/4 inch
L 6.102 inch
H 4.134 inch
J 5.118 inch
G 0.5 inch
A 0.984 inch
A1 1.109 inch
A5 0.472 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3400 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-3/4G+insonly">1050-1-3/4G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
