SKU: FC50-RHP

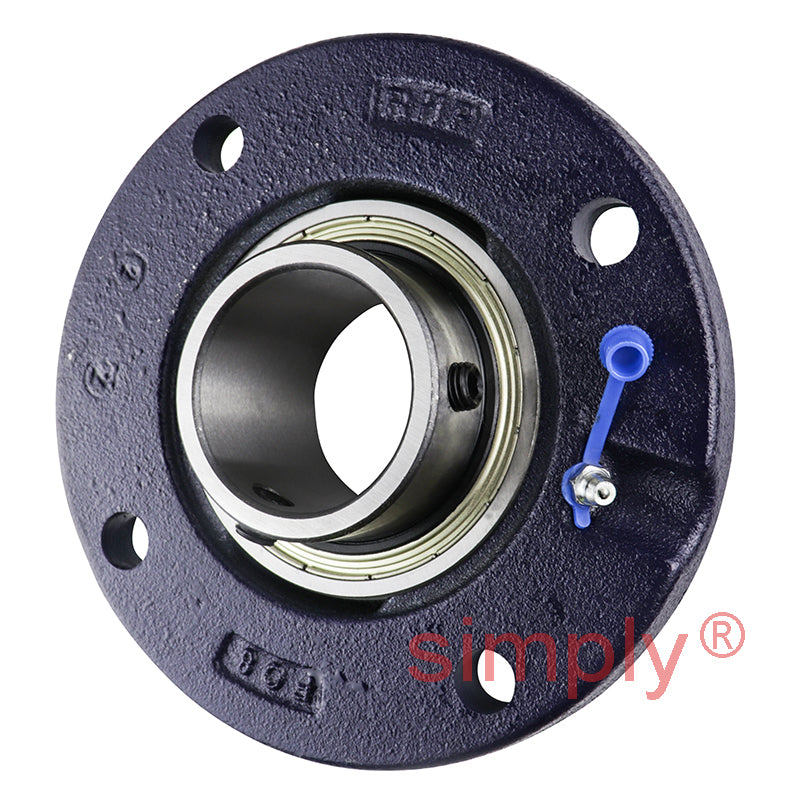

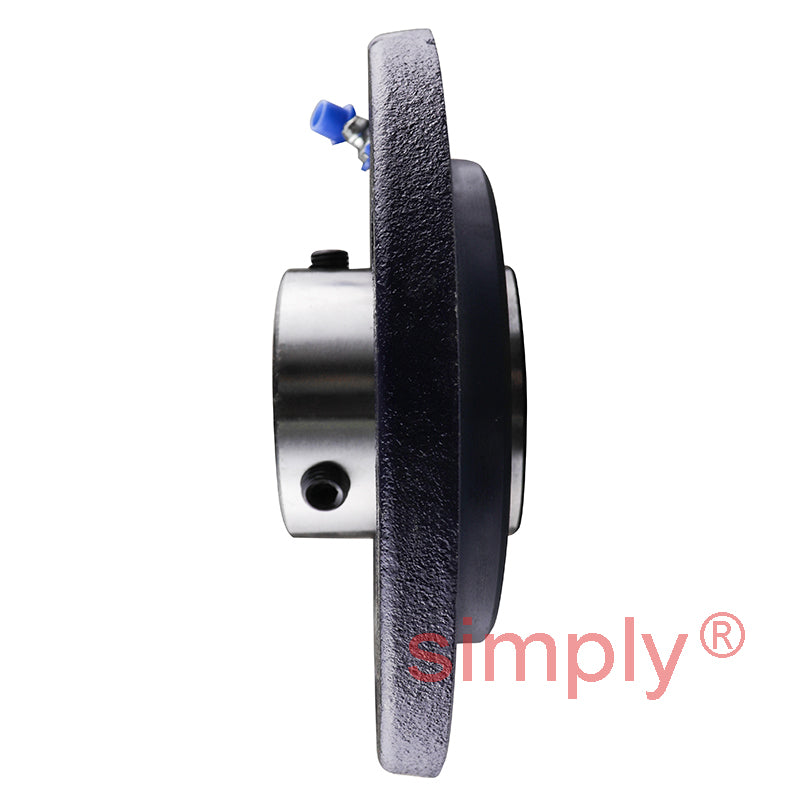

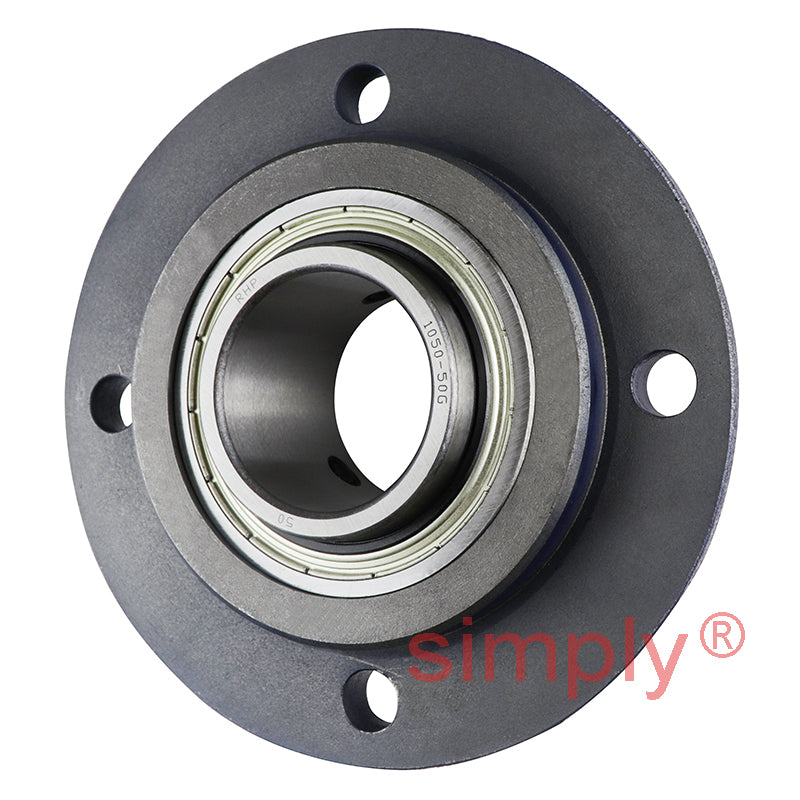

RHP FC50-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
Regular price
€74,95
ex VAT
Regular price
Sale price
€74,95
ex VAT
In stock
Price Break
10+
€56,62
20+
€53,44
30+
€52,80
40+
€52,17
50+
€51,53
75+
€50,89
100+
€47,71
200+
€47,08
250+
€46,44
500+
€45,80
1000+
€44,53
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- FC
- Pitch Circle Diameter:
- 135mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 165mm |
| H | 110mm |
| J | 135mm |
| G | 12mm |
| A | 25mm |
| A1 | 31.52mm |
| A5 | 13mm |
| B | 51.6mm |
| s | 19.04mm |
| d1 | 62.2mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
