SKU: FF2010

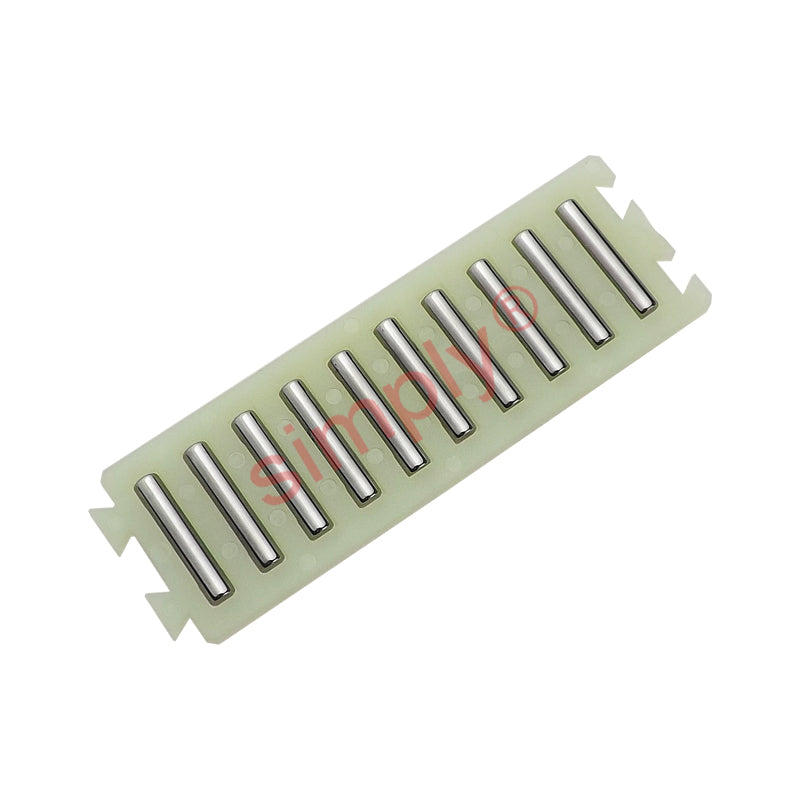

INA FF2010 Needle Roller Flat Cage 10mm Width x 32mm Length
INA FF2010 Needle Roller Flat Cage 10mm Width x 32mm Length
Regular price
€4,95
ex VAT
Regular price
Sale price
€4,95
ex VAT
In stock
Price Break
10+
€3,41
19+
€3,22
29+
€3,18
39+
€3,14
49+
€3,10
74+
€3,06
99+
€2,87
199+
€2,83
249+
€2,80
499+
€2,76
999+
€2,68
Description
Description
Needle Roller Flat Cages: Needle roller flat cages made up of numerous rolling elements. This ensures very high load capacities and precision. As the needle rollers are installed in a flat cage, needle roller flat cages use a small amount of space.
- Brand / Quality:
- INA - High Quality
- Width:
- 10mm
- Length:
- 32mm
Technical
Technical

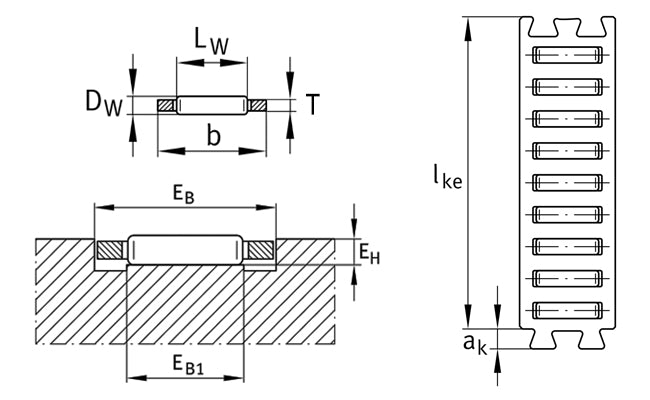

| --- | Main Dimensions |
|---|---|
| l<sub>ke</sub> (Length) | 32mm |
| D<sub>W</sub> (Rolling element diameter) | 2mm |
| B (Width) | 10mm |
| T (Cage Thickness) | 1.5mm |
| C (Dynamic load capacity) | 21.3 kN |
| C<sub>0</sub> (Static load capacity) | 61.9 kN |
| Weight | 0.02kg |
| --- | Mounting Dimensions |
| E<sub>B</sub> | 10.3mm (+0.2 Tolerance) |
| E<sub>B1</sub> | 7mm |
| E<sub>H</sub> | 1.7mm |
| --- | Other |
| L<sub>W</sub> (Length rolling element) | 6.8mm |
| a<sub>k</sub> | 2mm |
| Z<sub>e</sub> (Number of rolling elements per row) | 7 |
| Associated Rail | J3525, S3525 |
