SKU: FL16-PBC

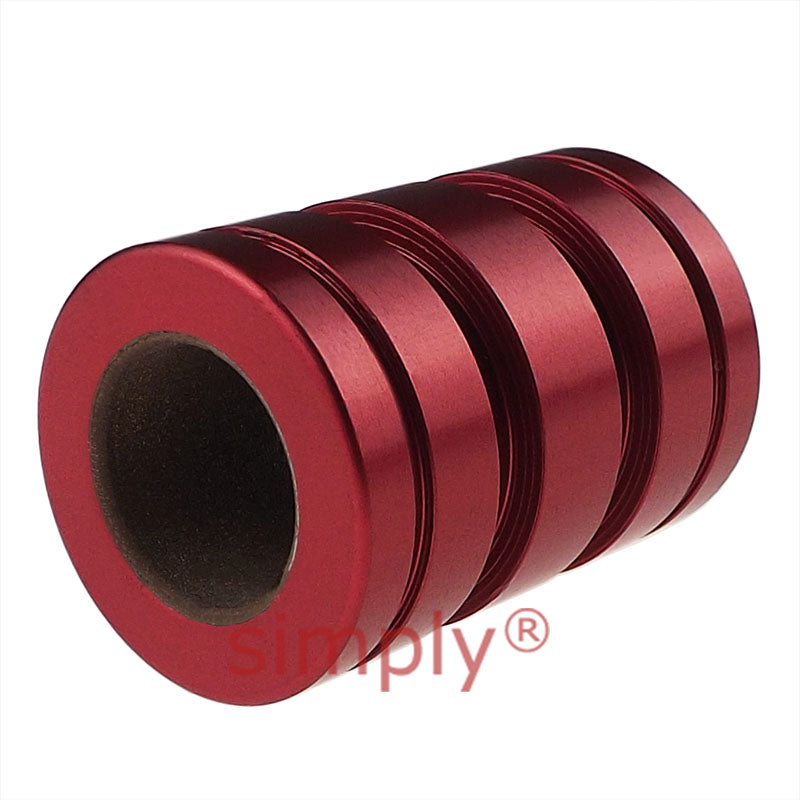

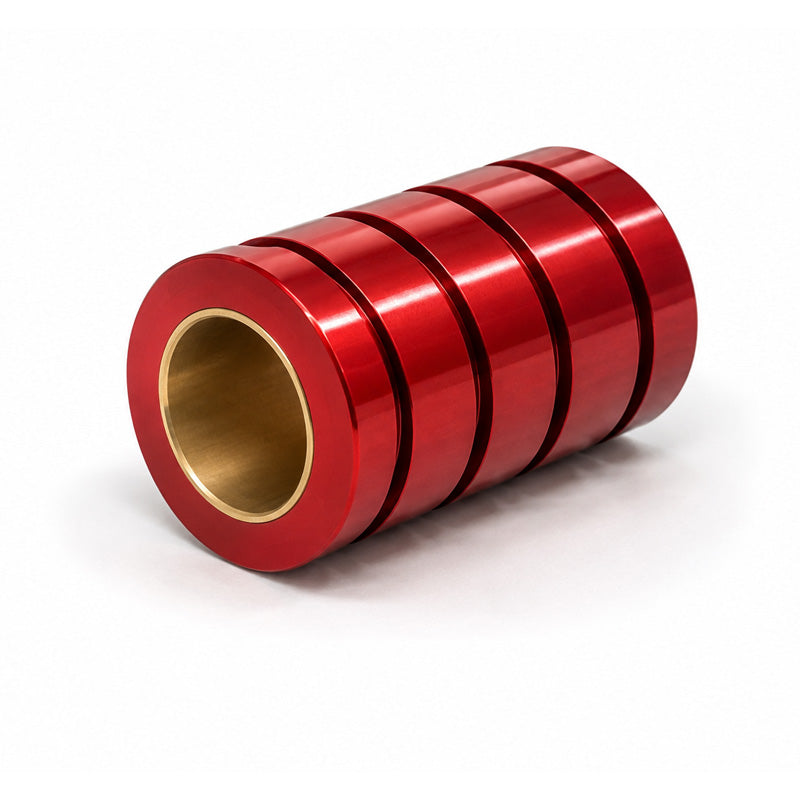

PBC FL 16 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
PBC FL 16 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
Regular price
€78,24
ex VAT
Regular price
Sale price
€78,24
ex VAT
In stock
Price Break
10+
€69,63
19+
€65,72
29+
€64,94
39+
€64,16
49+
€63,37
74+
€62,59
99+
€58,68
199+
€57,90
249+
€57,12
499+
€56,33
999+
€54,77
Couldn't load pickup availability
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Length:
- 57.15mm = 2.25 (2-1/4) inch
Technical
Technical
| Inside Diameter | 25.4mm = 1 inch |
|---|---|
| Outside Diameter | 39.69mm = 1.563 (1-9/16) inch |
| Width | 57.15mm = 2.25 (2-1/4) inch |
| Nominal Bore Size | 1 inch |
| Effective Surface Area (Square Inch) | 2.35kg |
| Max Static Load | 31.33kN |
| Weight | 0.103kg |
