SKU: FL24-PBC

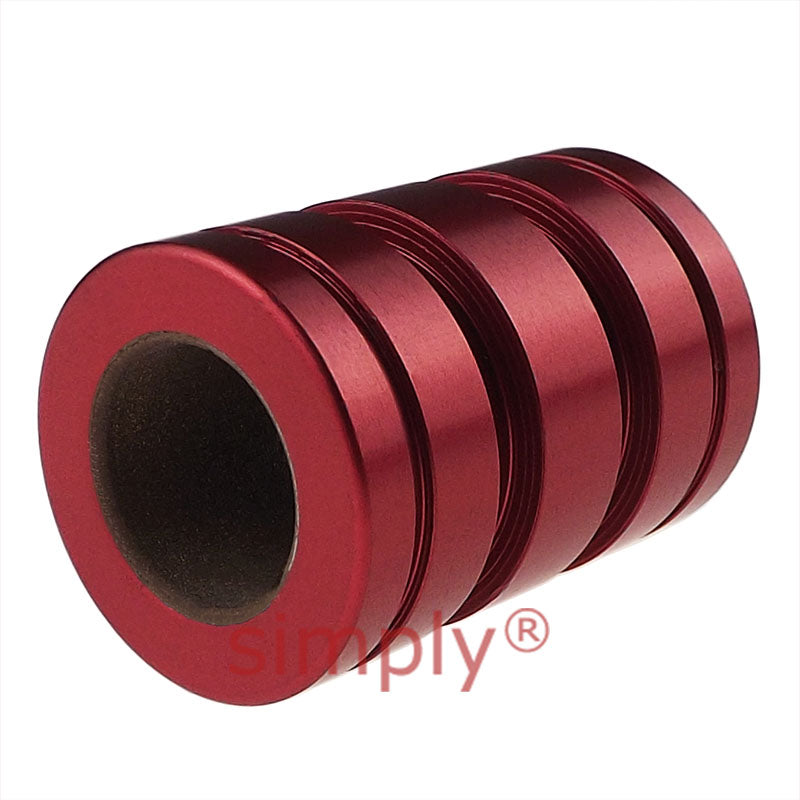

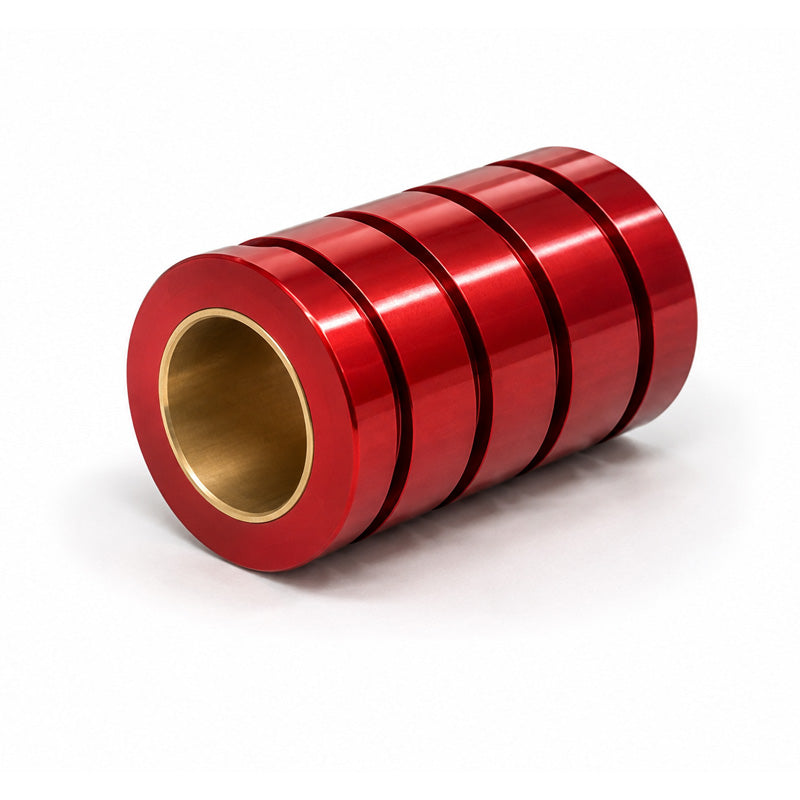

PBC FL 24 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 1.5x2.375x3 inch (Allow 2-3 Days)
PBC FL 24 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 1.5x2.375x3 inch (Allow 2-3 Days)
Regular price
€141,41
ex VAT
Regular price
Sale price
€141,41
ex VAT
In stock
Price Break
10+
€125,85
19+
€118,78
29+
€117,37
39+
€115,96
49+
€114,54
74+
€113,13
99+
€106,06
199+
€104,64
249+
€103,23
499+
€101,82
999+
€98,99
Couldn't load pickup availability
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Length:
- 76.2mm = 3 inch
Technical
Technical
| Inside Diameter | 38.1mm = 1.5 (1-1/2) inch |
|---|---|
| Outside Diameter | 60.33mm = 2.375 (2-3/8) inch |
| Width | 76.2mm = 3 inch |
| Nominal Bore Size | 1-1/2 inch |
| Effective Surface Area (Square Inch) | 4.7kg |
| Max Static Load | 62.67kN |
| Weight | 0.329kg |
