SKU: FL48-PBC

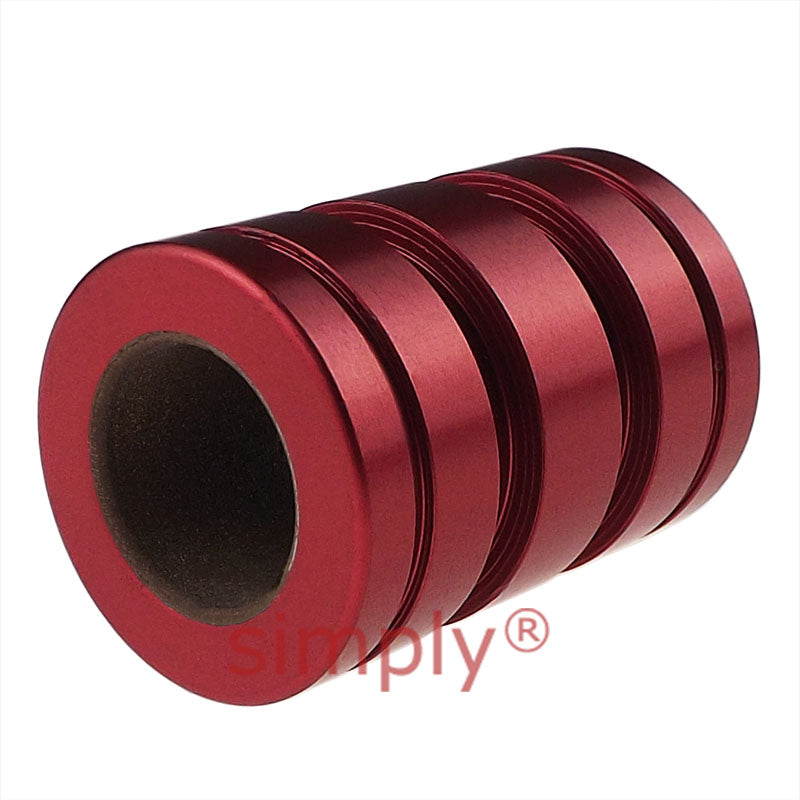

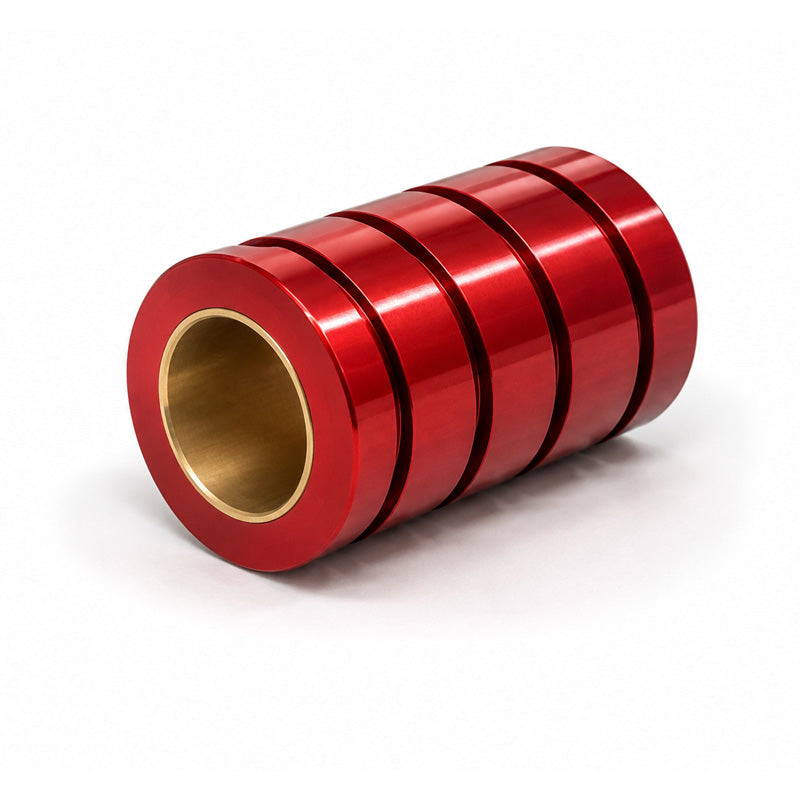

PBC FL 48 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 3x4.5x6 inch (Allow 2-3 Days)
PBC FL 48 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 3x4.5x6 inch (Allow 2-3 Days)
Regular price
€610,77
ex VAT
Regular price
Sale price
€610,77
ex VAT
In stock
Price Break
10+
€543,59
19+
€513,05
29+
€506,94
39+
€500,83
49+
€494,72
74+
€488,62
99+
€458,08
199+
€451,97
249+
€445,86
499+
€439,75
999+
€427,54
Couldn't load pickup availability
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Outside Diameter:
- 114.3mm = 4.5 (4-1/2) inch
- Length:
- 152.4mm = 6 inch
Technical
Technical
| Inside Diameter | 76.2mm = 3 inch |
|---|---|
| Outside Diameter | 114.3mm = 4.5 (4-1/2) inch |
| Width | 152.4mm = 6 inch |
| Nominal Bore Size | 3 inch |
| Effective Surface Area (Square Inch) | 18.8kg |
| Max Static Load | 250.67kN |
| Weight | 2.229kg |
