SKU: FLN16-PBC

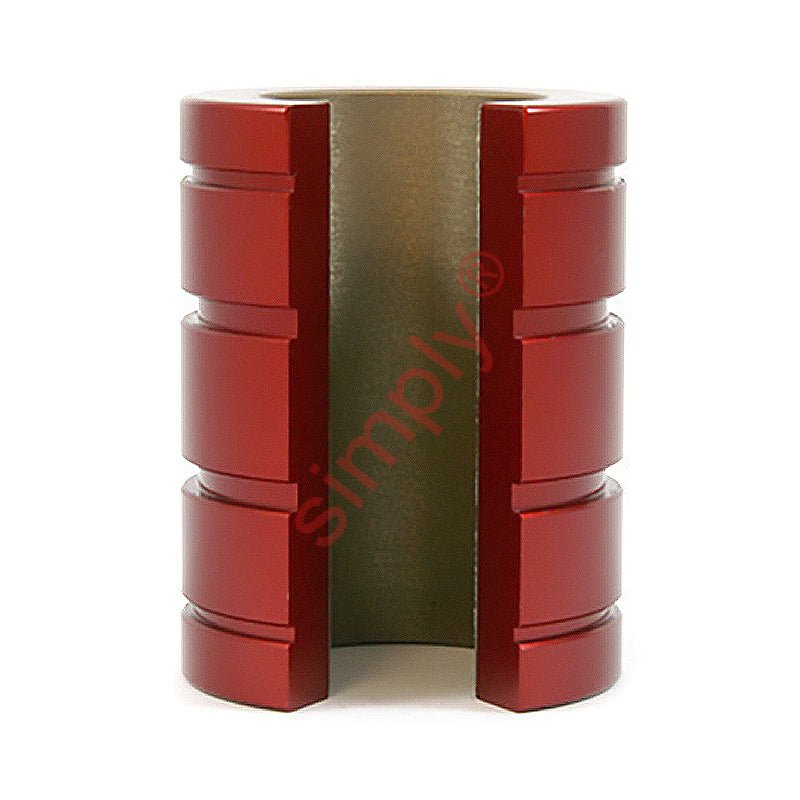

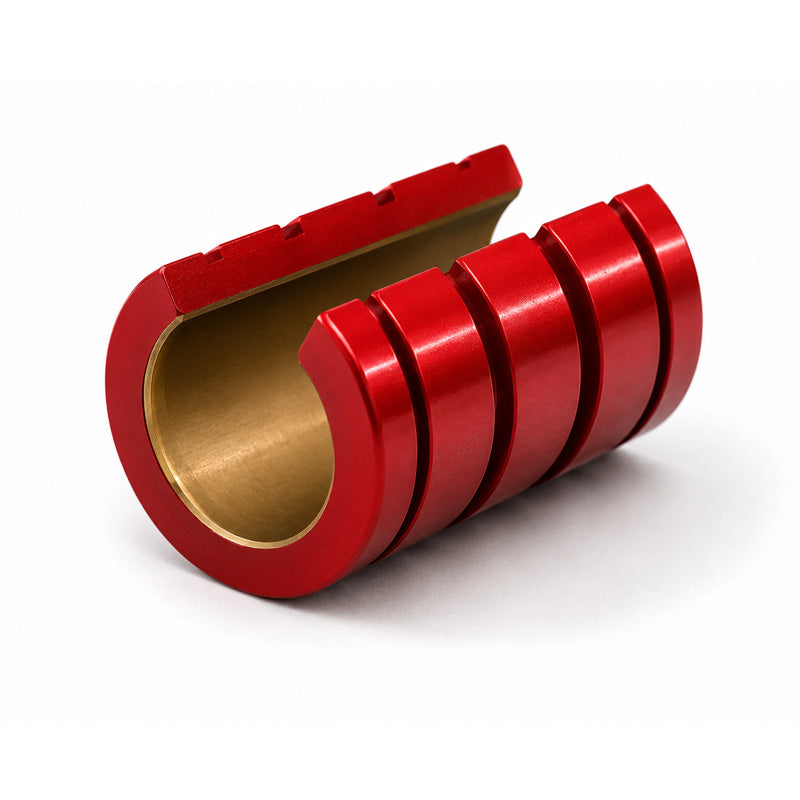

PBC FLN 16 Imperial Open Precision Linear Plain Bearing with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
PBC FLN 16 Imperial Open Precision Linear Plain Bearing with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
Regular price
€91,75
ex VAT
Regular price
Sale price
€91,75
ex VAT
In stock
Price Break
10+
€81,66
19+
€77,07
29+
€76,15
39+
€75,24
49+
€74,32
74+
€73,40
99+
€68,81
199+
€67,90
249+
€66,98
499+
€66,06
999+
€64,23
Couldn't load pickup availability
Description
Description

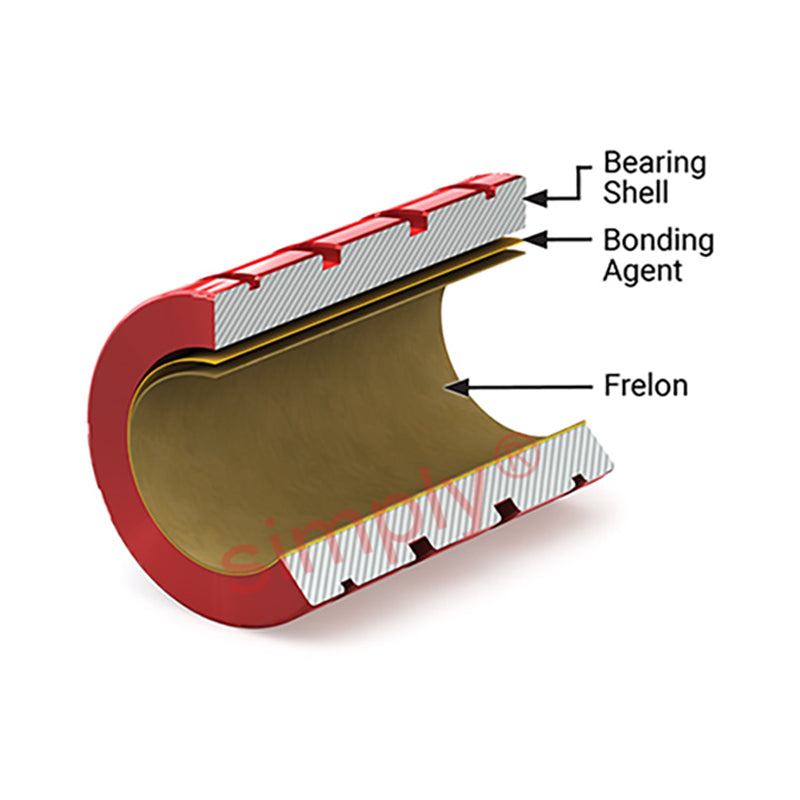

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Length:
- 57.15mm = 2.25 (2-1/4) inch
Technical
Technical
| Inside Diameter (A) | 25.4mm = 1 inch |
|---|---|
| Outside Diameter (B) | 39.69mm = 1.563 (1-9/16) inch |
| Width (C) | 57.15mm = 2.25 (2-1/4) inch |
| Nominal Bore Size | 1 inch |
| Effective Surface Area (Square Inch) | 2.35 inch |
| Max Static Load | 31.33kN |
| Weight | 0.103kg |
