SKU: FLN64-PBC

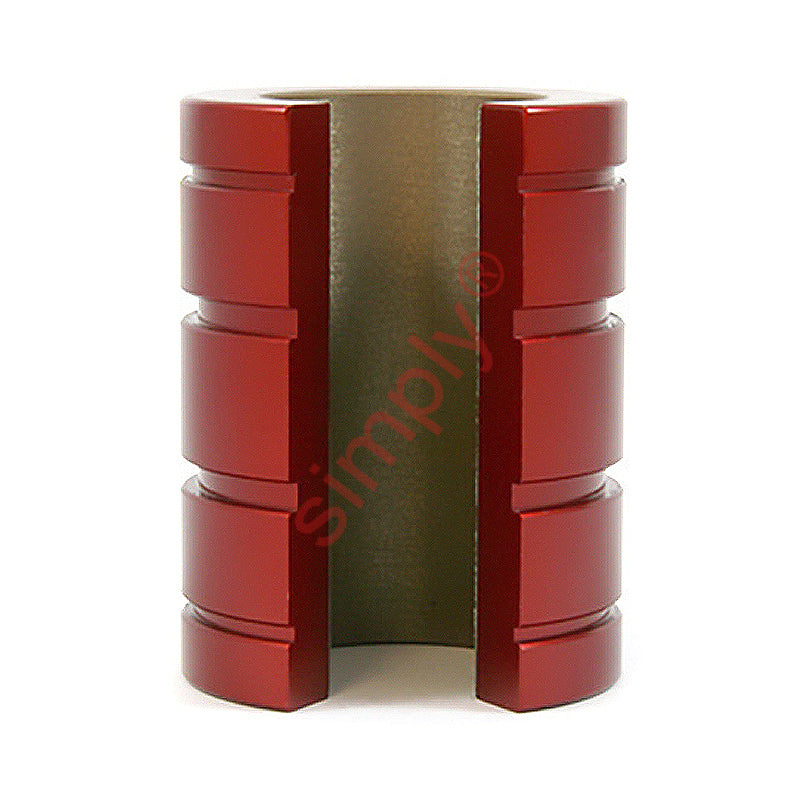

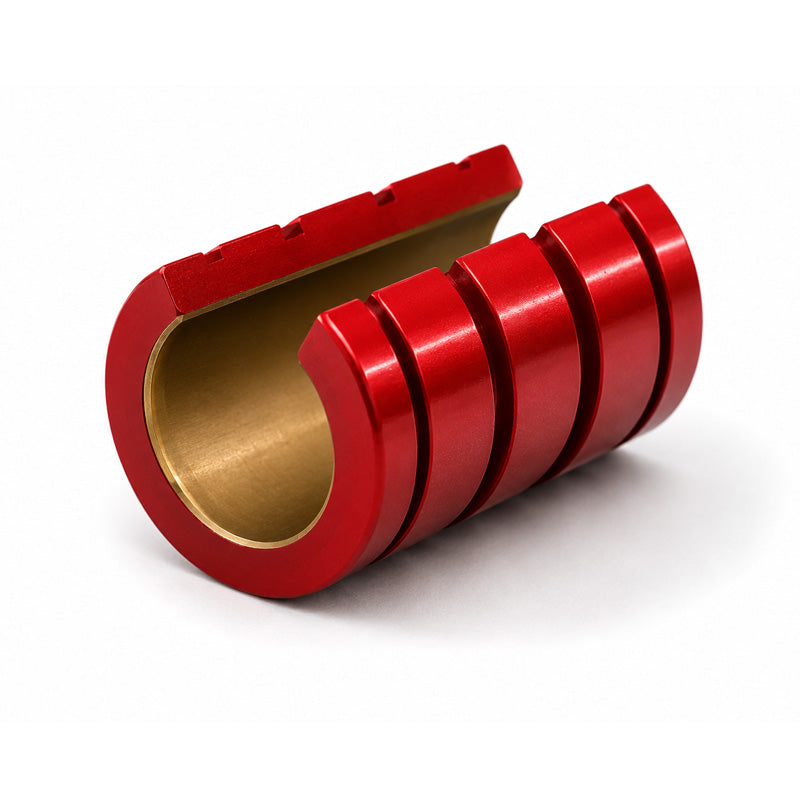

PBC FLN 64 Imperial Open Precision Linear Plain Bearing with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
PBC FLN 64 Imperial Open Precision Linear Plain Bearing with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
Regular price
€1.232,52
ex VAT
Regular price
Sale price
€1.232,52
ex VAT
In stock
Price Break
10+
€1.096,94
19+
€1.035,32
29+
€1.022,99
39+
€1.010,67
49+
€998,34
74+
€986,02
99+
€924,39
199+
€912,06
249+
€899,74
499+
€887,41
999+
€862,76
Couldn't load pickup availability
Description
Description

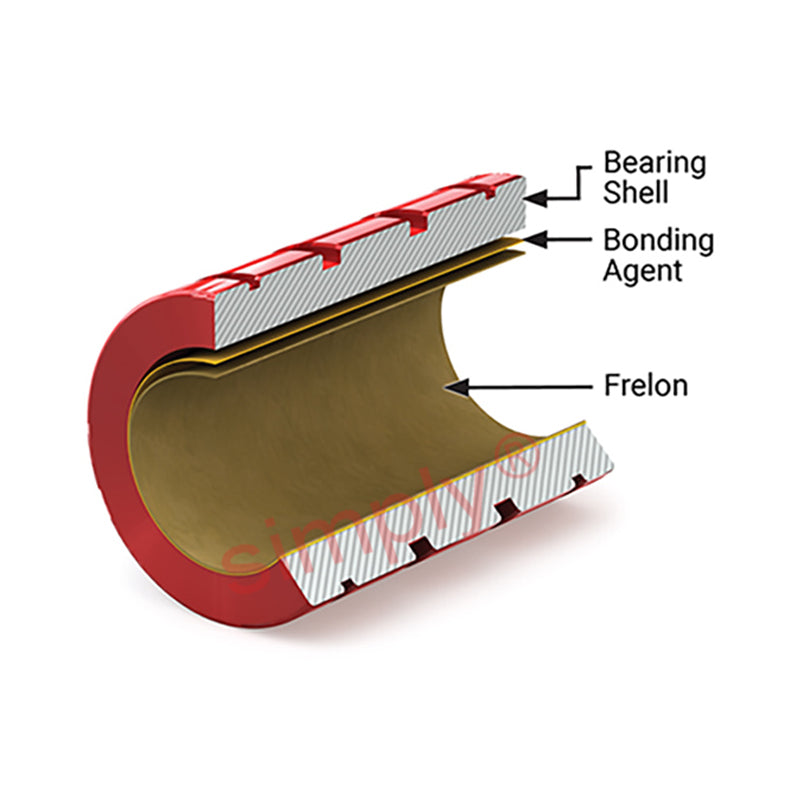

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 152.4mm = 6 inch
- Length:
- 203.2mm = 8 inch
Technical
Technical
| Inside Diameter (A) | 101.6mm = 4 inch |
|---|---|
| Outside Diameter (B) | 152.4mm = 6 inch |
| Width (C) | 203.2mm = 8 inch |
| Nominal Bore Size | 4 inch |
| Effective Surface Area (Square Inch) | 33.5 inch |
| Max Static Load | 446.67kN |
| Weight | 5.368kg |
