SKU: FY1.1/4TF-SKF

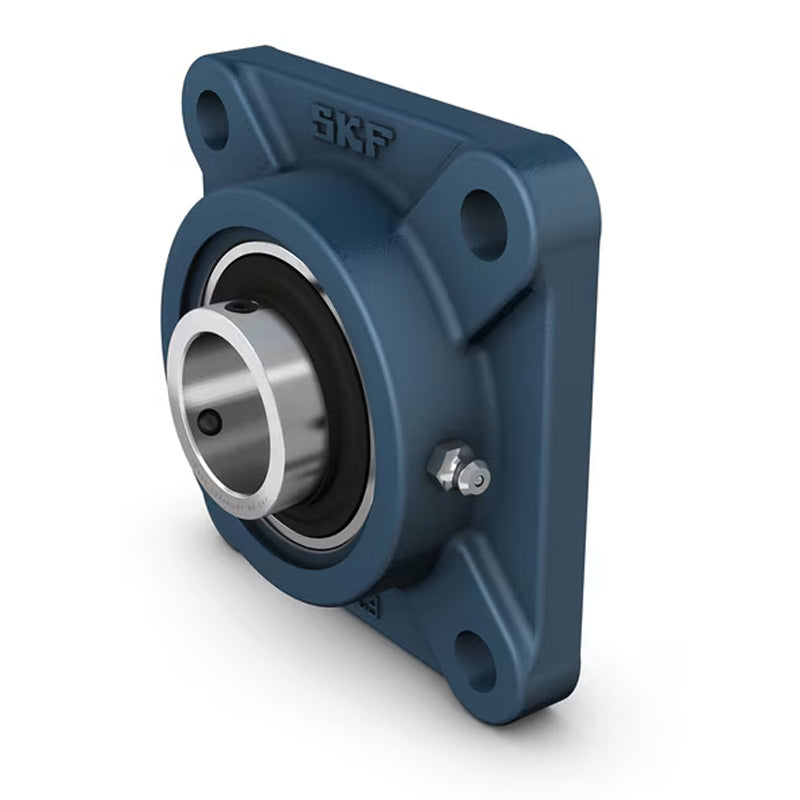

SKF FY1-1/4TF Square Cast Housing with Grub Screw 1-1/4 inch Insert
SKF FY1-1/4TF Square Cast Housing with Grub Screw 1-1/4 inch Insert
Regular price
€80,95
ex VAT
Regular price
Sale price
€80,95
ex VAT
In stock
Price Break
10+
€61,33
20+
€57,88
30+
€57,19
40+
€56,51
50+
€55,82
75+
€55,13
100+
€51,68
200+
€50,99
250+
€50,30
500+
€49,61
1000+
€48,24
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- FY
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 42.9mm |
| Da | 106.4mm |
| J | 92mm |
| L | 118mm |
| N | 14mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 46.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.45 kg |
| Housing | FY507M |
| Insert | YAR207-104-2F |
