SKU: FY1.1/8FM-SKF

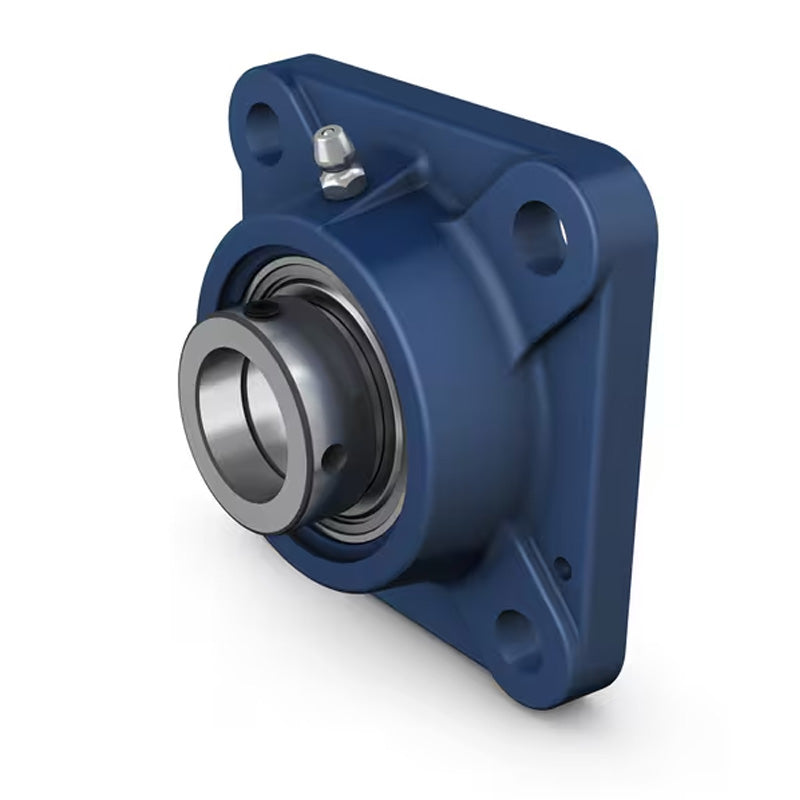

SKF FY1-1/8FM Square Cast Housing with Eccentric Collar 1-1/8 inch Insert
SKF FY1-1/8FM Square Cast Housing with Eccentric Collar 1-1/8 inch Insert
Regular price
€46,95
ex VAT
Regular price
Sale price
€46,95
ex VAT
In stock
Price Break
10+
€35,11
20+
€33,14
30+
€32,74
40+
€32,35
50+
€31,95
75+
€31,56
100+
€29,59
200+
€29,19
250+
€28,80
500+
€28,40
1000+
€27,61
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- FY
- Bolt Hole Centres:
- 82.5mm
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B1 | 35.7mm |
| J | 82.5mm |
| L | 108mm |
| G | 30mm |
| s1 | 26.7mm |
| T | 46.7mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit | 0.475 kN |
| Limiting speed | 6300 rpm |
| Weight | 1.1 kg |
| Housing | Insert |
