SKU: FY12TF-SKF

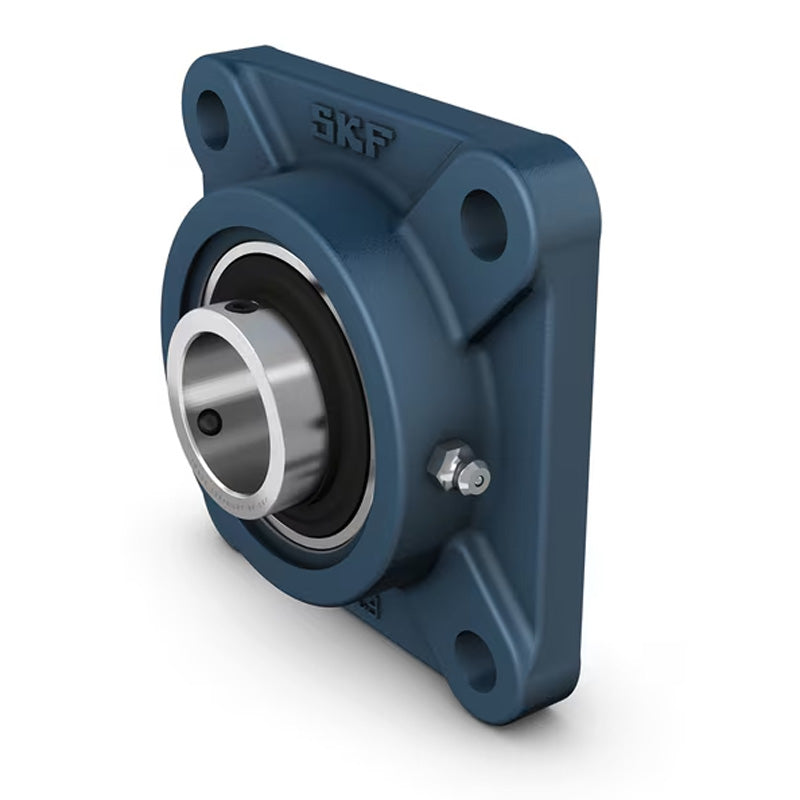

SKF FY12TF Square Cast Housing with Grub Screw 12mm Insert
SKF FY12TF Square Cast Housing with Grub Screw 12mm Insert
Regular price
€41,95
ex VAT
Regular price
Sale price
€41,95
ex VAT
In stock
Price Break
10+
€31,30
20+
€29,54
30+
€29,19
40+
€28,84
50+
€28,49
75+
€28,14
100+
€26,38
200+
€26,03
250+
€25,67
500+
€25,32
1000+
€24,62
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Style:
- FY
- Bolt Hole Centres:
- 54mm
Technical
Technical
| d | 12mm |
|---|---|
| A1 | 26mm |
| A2 | 11mm |
| B | 27.4mm |
| Da | 55.6mm |
| J | 54mm |
| L | 76mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 15.9mm |
| T | 32.9mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.47 kg |
