SKU: FY25TF/VA228-SKF

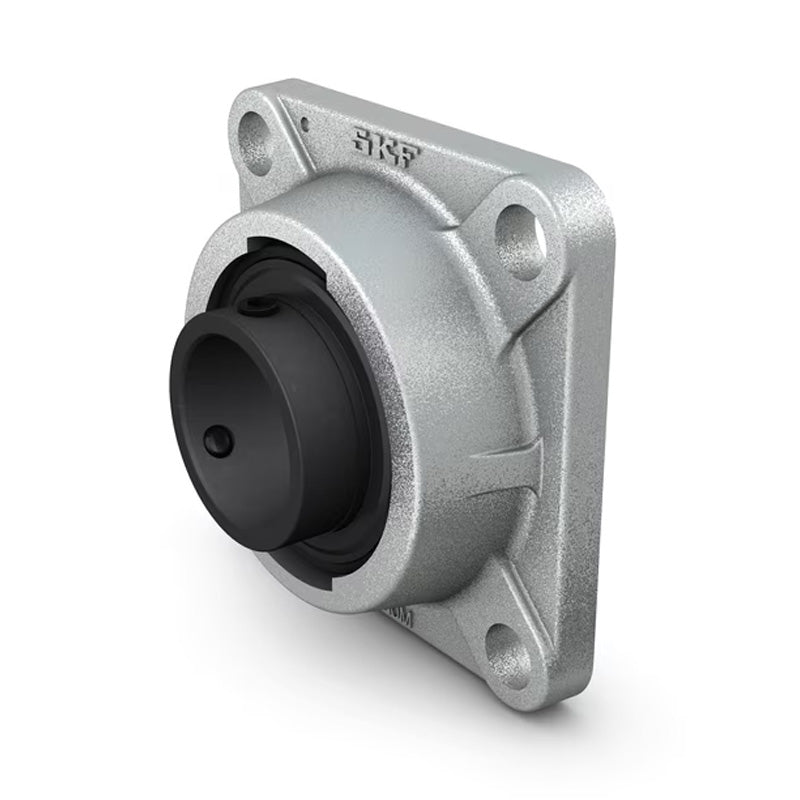

SKF FY25TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 25mm
SKF FY25TFVA228 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Graphite Cage Insert for Metric Shaft 25mm
Regular price
€197,95
ex VAT
Regular price
Sale price
€197,95
ex VAT
In stock
Price Break
10+
€150,25
19+
€141,81
29+
€140,12
39+
€138,44
49+
€136,75
74+
€135,06
99+
€126,62
199+
€124,93
249+
€123,24
499+
€121,55
999+
€118,18
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| J | 70mm |
| L | 95mm |
| N | 12.7mm |
| G | 10mm |
| T | 38.8mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.8 kN |
| Weight | 0.77 kg |
