SKU: FY25WF-SKF

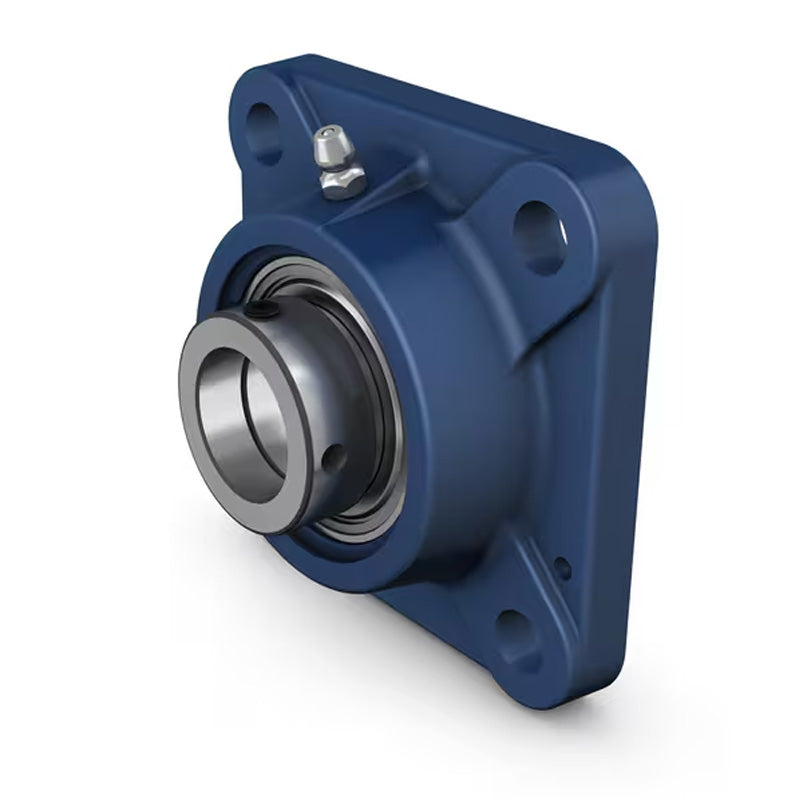

SKF FY25WF Square Cast Housing with Eccentric Locking Collar 25mm Insert
SKF FY25WF Square Cast Housing with Eccentric Locking Collar 25mm Insert
Regular price
€60,95
ex VAT
Regular price
Sale price
€60,95
ex VAT
In stock
Price Break
10+
€46,39
20+
€43,78
30+
€43,26
40+
€42,74
50+
€42,22
75+
€41,70
100+
€39,09
200+
€38,57
250+
€38,05
500+
€37,53
1000+
€36,49
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FY
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B1 | 44.4mm |
| Da | 74.6mm |
| J | 70mm |
| L | 95mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 26.9mm |
| T | 45.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.83 kg |
| Compatible end cover closed | ECY205 |
