SKU: FY3/4TF-SKF

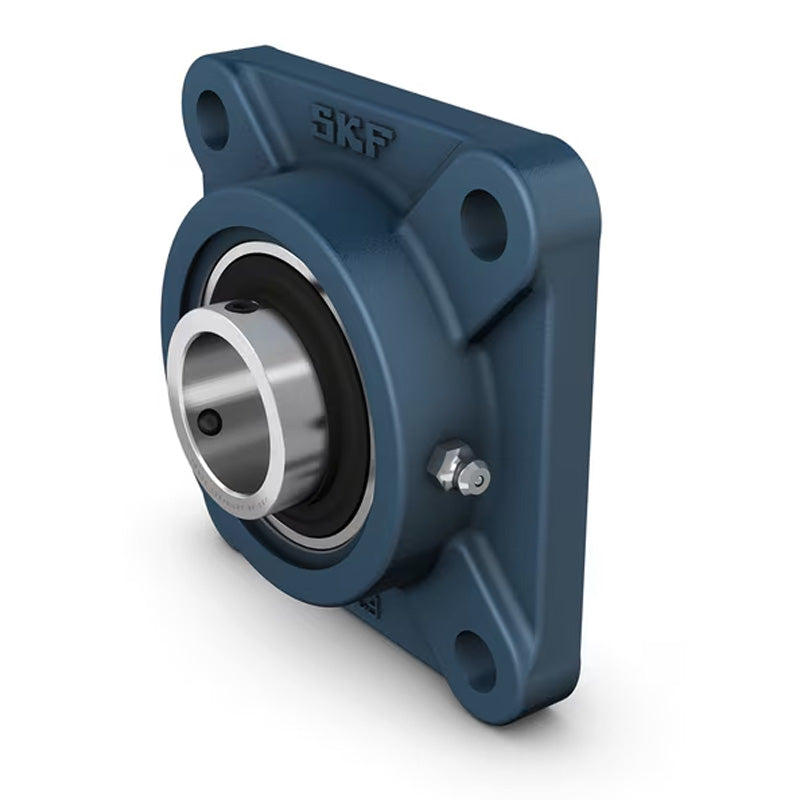

SKF FY3/4TF Square Cast Housing with Grub Screw 3/4 inch Insert
SKF FY3/4TF Square Cast Housing with Grub Screw 3/4 inch Insert
Regular price
€48,95
ex VAT
Regular price
Sale price
€48,95
ex VAT
In stock
Price Break
10+
€36,76
20+
€34,70
30+
€34,28
40+
€33,87
50+
€33,46
75+
€33,04
100+
€30,98
200+
€30,57
250+
€30,15
500+
€29,74
1000+
€28,91
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- FY
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B | 31mm |
| Da | 68.3mm |
| J | 63.5mm |
| L | 86mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 18.3mm |
| T | 37.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit | 0.28 kN |
| Limiting speed | 8500 rpm |
| A5 | 18.5mm |
| Weight | 0.61 kg |
| Housing | FY504M |
| Insert | YAR204-012-2F |
