SKU: FY35WF-SKF

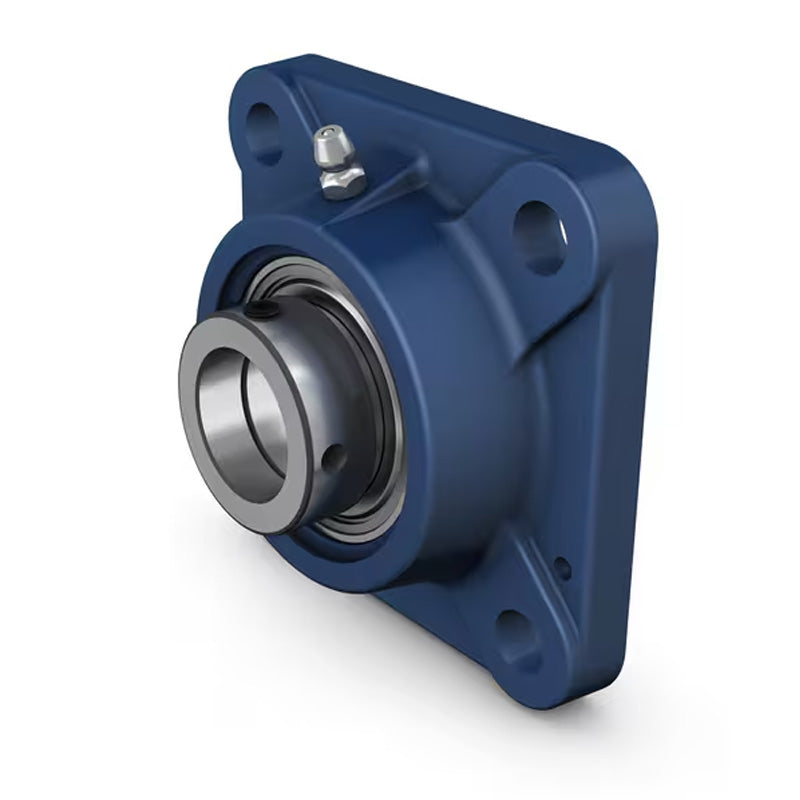

SKF FY35WF Square Cast Housing with Eccentric Locking Collar 35mm Insert
SKF FY35WF Square Cast Housing with Eccentric Locking Collar 35mm Insert
Regular price
€85,95
ex VAT
Regular price
Sale price
€85,95
ex VAT
In stock
Price Break
10+
€65,41
20+
€61,73
30+
€61,00
40+
€60,26
50+
€59,53
75+
€58,79
100+
€55,12
200+
€54,38
250+
€53,65
500+
€52,91
1000+
€51,44
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FY
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B1 | 51.1mm |
| Da | 106.4mm |
| J | 92mm |
| L | 118mm |
| N | 14mm |
| G | 12mm |
| s1 | 32.3mm |
| T | 53.3mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| A5 | 22mm |
| Weight | 1.55 kg |
| Compatible end cover closed | ECY207 |
