SKU: FY55TR-SKF

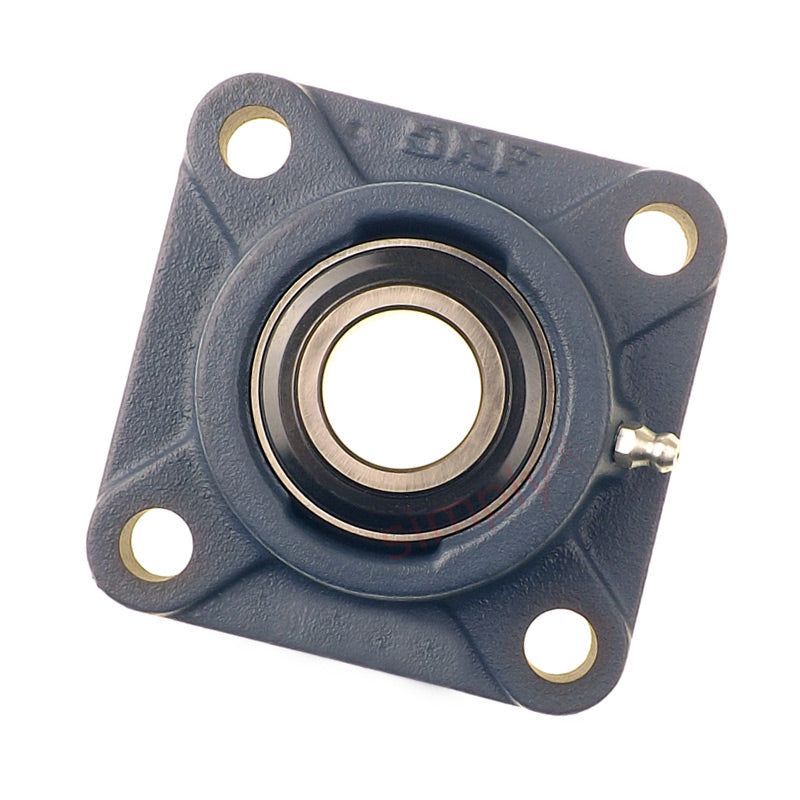

SKF FY55TR Square Cast Housing with Grub Screw 55mm Insert
SKF FY55TR Square Cast Housing with Grub Screw 55mm Insert
Regular price
€175,95
ex VAT
Regular price
Sale price
€175,95
ex VAT
In stock
Price Break
10+
€133,26
20+
€125,77
30+
€124,27
40+
€122,78
50+
€121,28
75+
€119,78
100+
€112,29
200+
€110,80
250+
€109,30
500+
€107,80
1000+
€104,81
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- FY
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 55mm |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B | 55.6mm |
| Da | 150.8mm |
| J | 130mm |
| L | 162mm |
| N | 18mm |
| G | 16mm |
| s1 | 33.4mm |
| T | 64.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 1900 rpm |
| A5 | 34mm |
| Weight | 3.6 kg |
| Compatible end cover closed | ECY211 |
