SKU: FY60WF-SKF

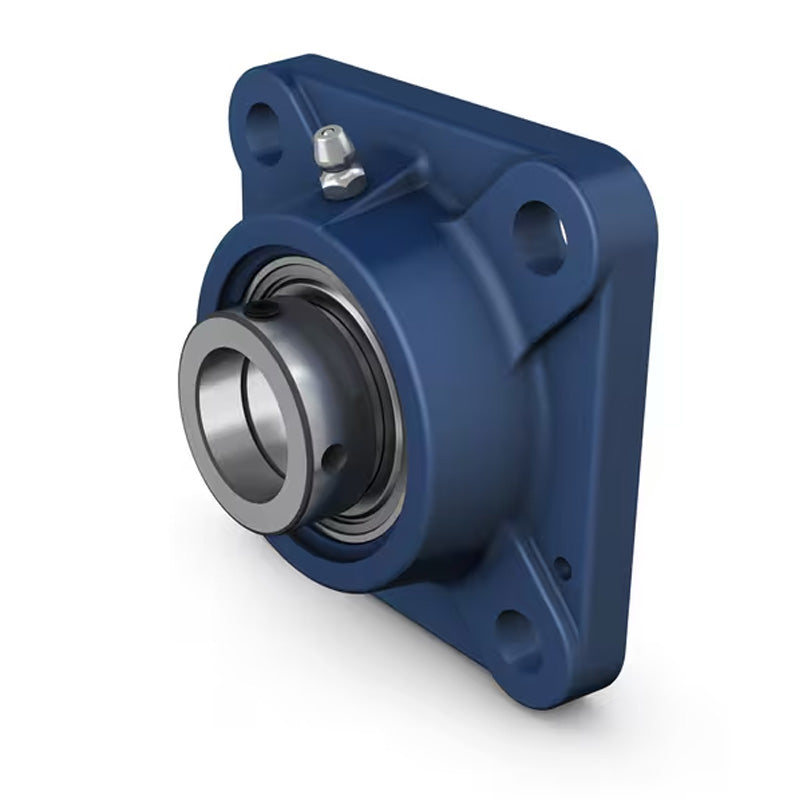

SKF FY60WF Square Cast Housing with Eccentric Locking Collar 60mm Insert
SKF FY60WF Square Cast Housing with Eccentric Locking Collar 60mm Insert
Regular price
€208,95
ex VAT
Regular price
Sale price
€208,95
ex VAT
In stock
Price Break
10+
€158,73
20+
€149,81
30+
€148,02
40+
€146,24
50+
€144,46
75+
€142,67
100+
€133,76
200+
€131,97
250+
€130,19
500+
€128,41
1000+
€124,84
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FY
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B1 | 77.9mm |
| Da | 161.9mm |
| J | 143mm |
| L | 175mm |
| N | 18mm |
| G | 16mm |
| s1 | 46.6mm |
| T | 80.8mm |
| Static load Cr | 30 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| A5 | 35.5mm |
| Weight | 5 kg |
| Compatible end cover closed | ECY212 |
